Brake Pedal, Removing and Installing

Brake Pedal, Removing and Installing

Removing

- Remove storage compartment on drivers side.





- Unscrew bolts -1-.
- Remove cover -A-.
- Remove brake light switch (square housing).
- Remove brake light switch (round housing).





- Remove connecting plate between clutch pedal and brake pedal - arrows - on vehicles with manual transmission.
- Unplug 6-pin connector on accelerator pedal module.
- Separate brake pedal from brake booster.
- Remove hex nut - -and detach brake pedal.

Installing

Install in reverse sequence; note the following points:

Note:
^ Before installing, grease all bearings with polycarbamide grease, G 052 142 A2.





- Hold ball head of push rod in front of mounting and push brake pedal in direction of brake booster, so that the ball head locates audibly.
- Install brake light switch (square housing).
- Install brake light switch (round housing).

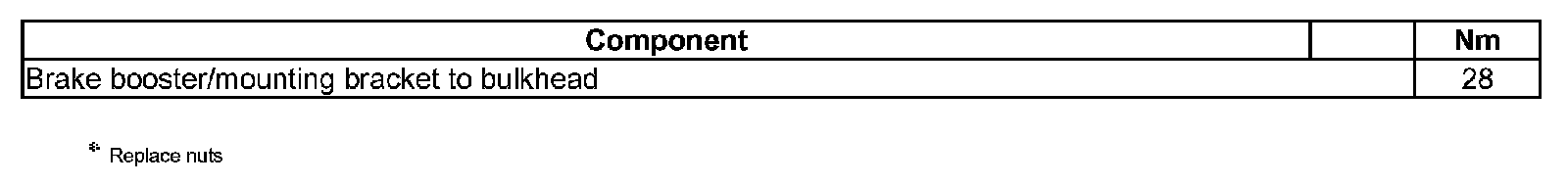

Tightening Specifications
