ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE: Overview

On Board Diagnostic (OBD)
Required special tools and operating instructions

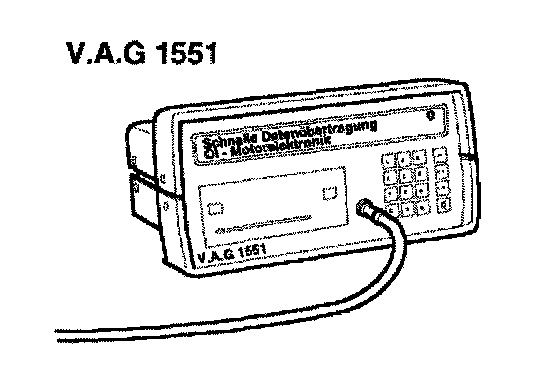

^ VAG1551 Scan Tool

Notes:
^ Instead of scan tool VAG1551, vehicle system tester VAG1552 can also be used, however no printout is possible.
^ All functions of the VAG1551/1552 can also be conducted with tester VAS5051.

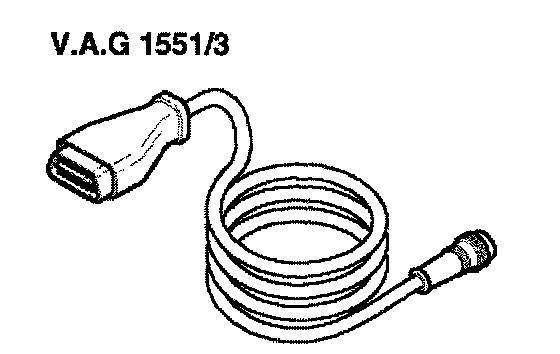

^ VAG1551/3 Diagnostic wire
