Rear Axle Components

Rotor, Checking

- Remove wheel.

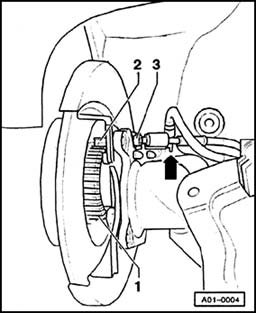

- Remove brake caliper housing - arrows - and hang to one side securing it in position on vehicle with wire.

Note:
^ Do not twist or kink brake hose/line.





- Rotate brake disc and check whether rotor -1- is damaged or dirty.
- If rotor is damaged or in the event of excessive wheel bearing clearance, replace rotor together with wheel hub.
- Install brake caliper housing.
