Front Axle Components

Rotor, Checking

- Remove wheel.
- Rotate disc brake and check rotor for damage or dirt.
- If rotor is damaged, remove and replace wheel hub with rotor.

Rotor Lateral Run-Out, Checking

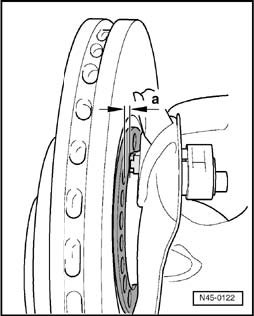

- Turn wheel hub and check that gap - a - between rotor and speed sensor is uniform.

^ Distance - a - = 0.3 mm

- If lateral run-out is out of tolerance, remove and replace wheel hub with rotor.
