Multi-Pin Connector For J104, Terminal Pin Assignments







Terminal assignments of wiring harness connector for control module - J104

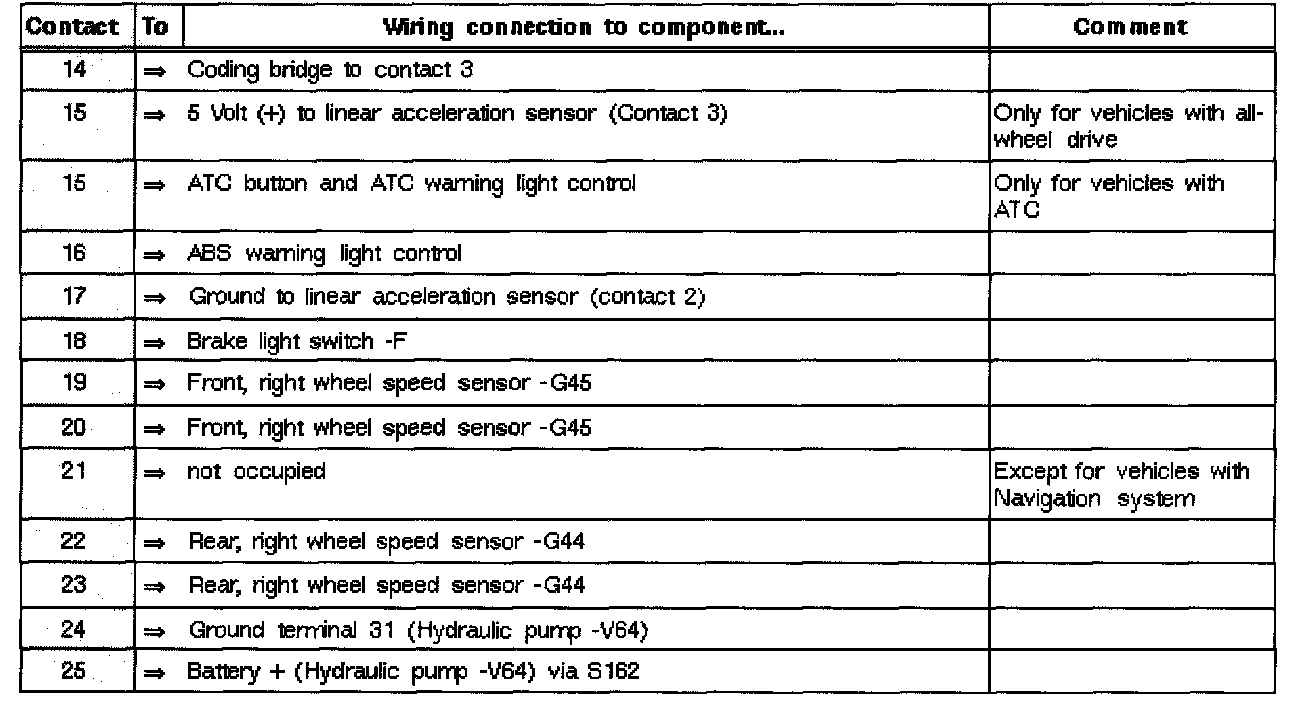

Electrical testing terminal pin assignments chart (Part 1 Of 2)





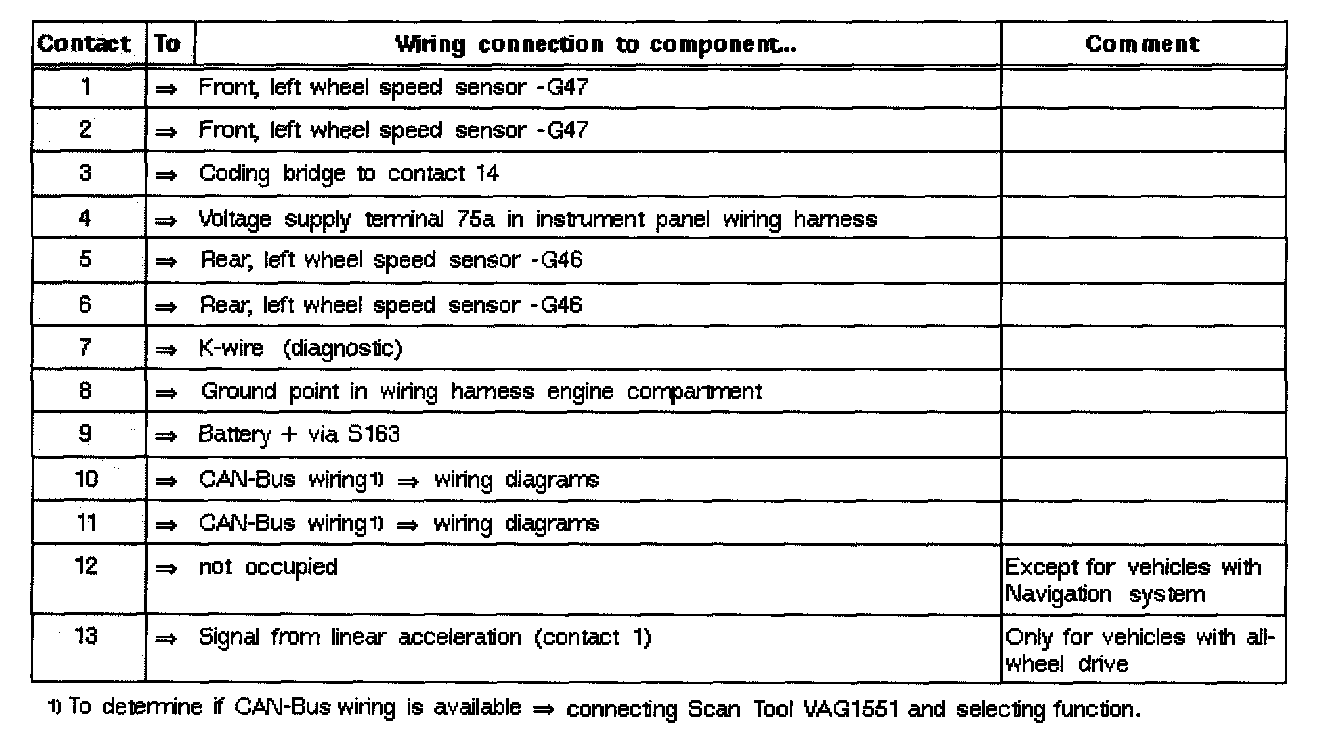

Electrical testing terminal pin assignments chart (Part 2 Of 2)
