Front Wheel Drive

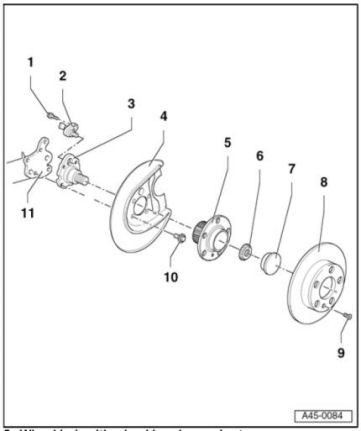

Exploded view






1. Hex socket-head screw 8 Nm

2. ABS wheel speed sensor
- Before installing speed sensor, clean inner surface of hole and coat speed sensor all around with lubricant paste G 000 650

3. Stub axle

4. Backing plate

5. Wheel hub with wheel bearing and rotor
- Replace only as complete unit

6. Self-locking 12-point nut

7. Cap

8. Brake disc

9. Phillips-head screw

10. Hex bolt, 60 Nm
- With dished washer

11. Axle beam
