Home >> Audi >> 2005 >> TT Coupe (8N3) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Anti-Lock Brake System (ABS) MK20 With Electronic Differential Lock (EDL) , Anti-Slip Regulation (ASR - ASC) and (ESP) >> From Model Year 2002 >> Diagram 45\04 (Track 29-42)

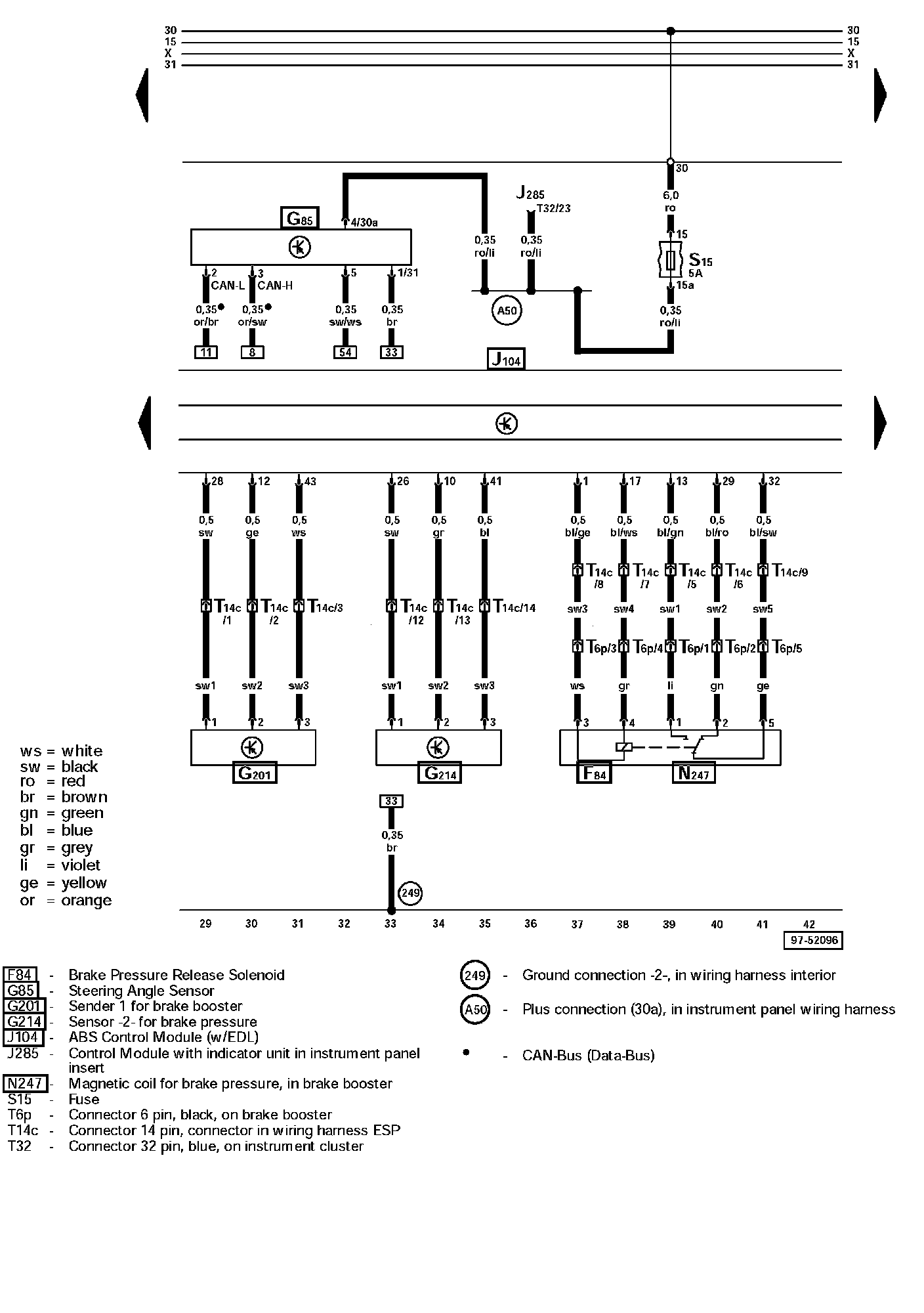

Diagram 45\04 (Track 29-42)



IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
