Noise Insulation, Removing

Noise Insulation, Removing

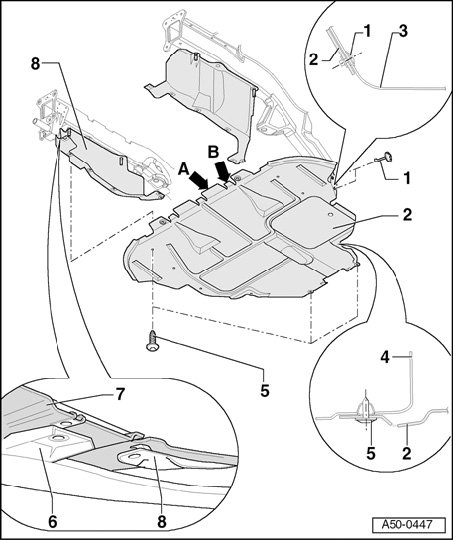

1 - Clamping pin
- Qty. 4
2 - Noise insulation
- To remove, unscrew self-tapping screws - 5 - and pull noise insulation out of lock carrier toward rear.
- When installing, insert lugs on front section of noise insulation above (arrow - A -) and below (arrow - B -) lock carrier.
3 - Wheelhousing liner
4 - Subframe
5 - Self-tapping screw
- 2.2 Nm + 0.3 Nm







6 - Bumper cover
7 - Lock carrier with attached components
8 - V-belt guard
- When installing, insert retainer pin in lock carrier - 7 -.
