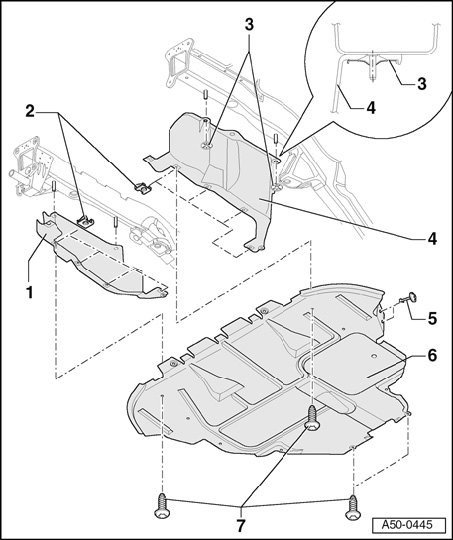

Noise Insulation, Assembly Overview

Noise Insulation, Assembly Overview







1 - V-belt guard
- Remove noise insulation.
- Unscrew clamping washer and remove V-belt guard.
- When installing, insert front retainer pin in underside of lock carrier
2 - Speed nuts
- Qty. 7
3 - Clamping washer
- To remove, unscrew using suitable screwdriver.
- Simply press on clamping washers to install.







4 - Engine cover panel
- Remove noise insulation.
- Unscrew clamping washers and detach V-belt guard.
- When installing, insert front retainer pin in underside of lock carrier.
5 - Clamping pin
- Qty. 4
6 - Noise insulation
- To remove, unscrew self-tapping screws - 7 - and detach.
7 - Self-tapping screw
- 2.2 Nm + 0.3 Nm
