Rear Seat Lock, Removing



Rear Seat Lock, Removing

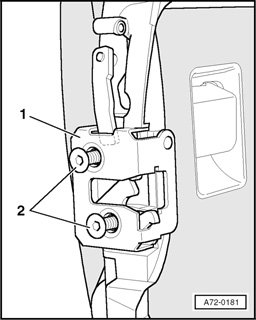

- Remove left or right rear seat backrest.
- Remove lock trim.
- Screws - 2 - are removed with lock trim.
- Remove lock - 1 -.
