Rear Seat Backrest, Removing and Installing

Rear Seat Backrest, Removing And Installing

NOTE: Backrest not pictured for better illustration.

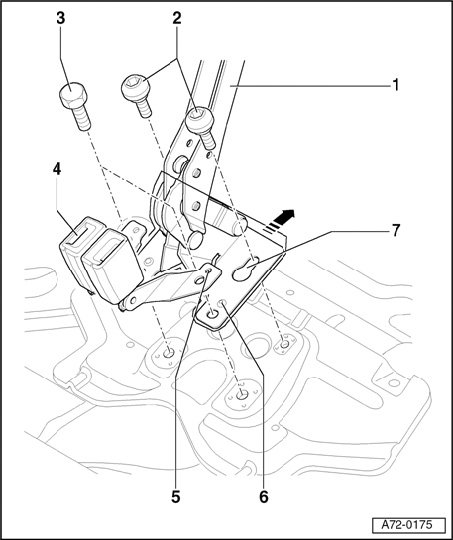

Detaching center mounting







1 - Center mounting

- Removing
- Remove rear seat bench.
- Remove bolts - 3 - (2x).
- Remove seat belt buckles - 4 - (2x).
- It is not necessary to remove screws - 2 -.

- Installing
- When installing belt buckles - 4 -, make sure mounts - 5 - are positioned on retainer tabs - 6

2 - Bolts (2x)
- Tightening torque 19 Nm
3 - Bolts (2x)
- Tightening torque 55 Nm
4 - Buckle
5 - Mount
6 - Retainer tab
7 - Elongated hole

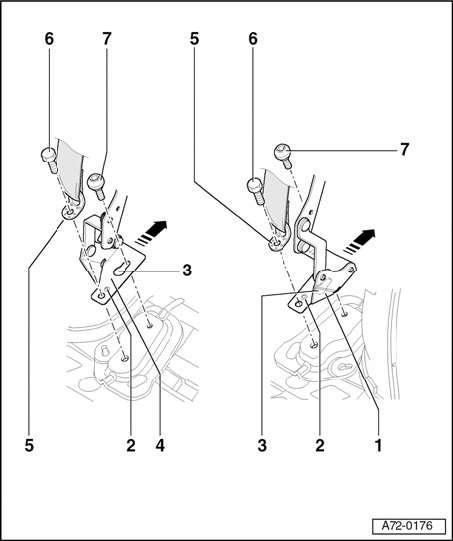

Removing side mounts







1 - Left side mount

- Removing
- Remove rear seat bench.
- Remove bolts - 6 - (2x).
- Remove seat belt end fitting - 5 -.
- It is not necessary to remove screws - 7 -.
- Slide seat toward rear in direction of arrow at side and center mounts.
- Guide seat out through widened opening at elongated hole - 3 -.

- Installing
- Guide seat in through widened opening at elongated hole - 3 -.
- Slide seat forward at side and center mounts.
- When installing seat belt end fitting - 5 -, make sure end fitting is located on retainers tabs - 6

2 - Mounting
3 - Elongated hole
4 - Right side mount
5 - Seat belt end fitting
6 - Bolts (2x)
- Tightening torque 55 Nm
7 - Screws (2x)
- Tightening torque 19 Nm
