Backrest Heating Element (Glued), Removing and Installing

Backrest Heating Element (glued), Removing And Installing







- Remove seat.
- Remove backrest cover.

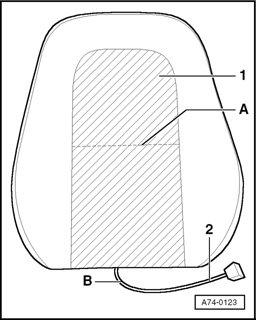

- Cut electrical wire - 2 - off old heating element - 1 -.
- Glue new heating element onto old heating element (avoid creases).
- Insert heating element into folds at locations marked - A -.
- Insert wire - 2 - into slot - B - provided.
