Power Door Lock Actuator: Service and Repair

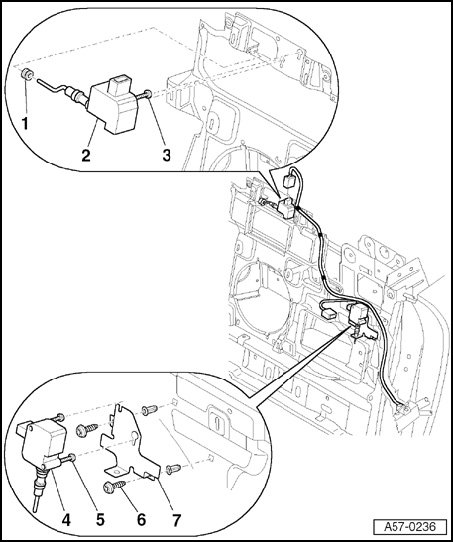

Actuators, Removing And Installing







1 - Grommet
2 - Actuator, center
- Remove center trim of rear panel
- Disconnect electrical harness connector for actuator.
- Loosen bolts (2x) and remove actuator from elongated holes.
3 - Torx bolt
- 2 Nm







4 - Actuator, left
- Remove side trim of rear panel
- Disconnect electrical harness connector for actuator.
- Loosen bolts - 5 - and pull actuator out of elongated holes.
5 - Torx bolt
- 2 Nm
6 - Torx bolt
- 2 Nm
7 - Bracket for actuator
