Drivers Storage Compartment, Removing

Drivers Storage Compartment, Removing

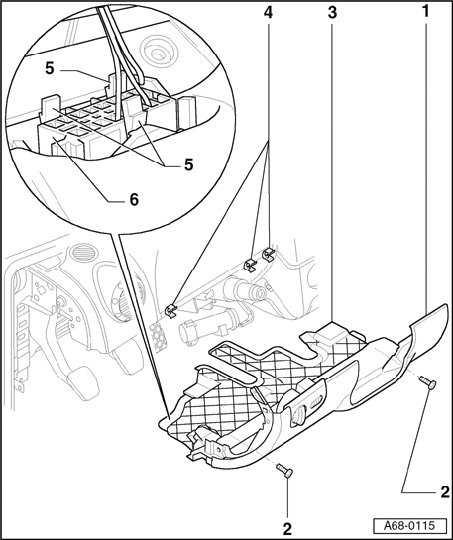

1 - Drivers storage compartment

- Removing
- Unclip left instrument panel end trim
- Unfasten hood cable in passenger compartment
- Remove screws - 2 - (2x).
- Remove screws on side
- Pull drivers storage compartment - 1 - out of clips - 4 - (3x).
- Pull sides of frame outward.
- Move drivers storage compartment down.
- Unplug connector to rotary light switch
- Unclip diagnostic connector - 5 - by squeezing together tabs - 5 - (3x).

- Installing
- Guide holder - 3 - into mount at pedals.

2 - Screws (2x)
3 - Holder
4 - Clips
5 - Tabs
6 - Data Link Connector (DLC)

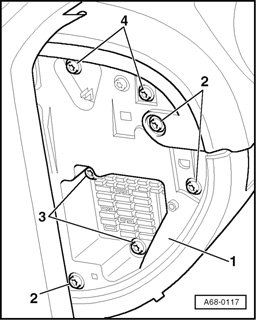

Removing screws on side
- Remove screws - 2 - (3x).







Disconnect connector for rotary light switch
- Disconnect connectors - 1 - and - 2 - by pressing retainer tabs - arrows -.
