Roof Rail Trim



Roof Rail Trim

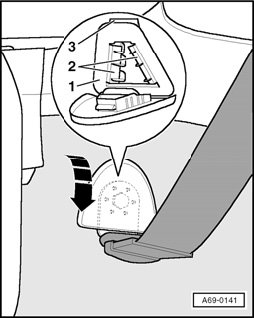

- Unclip roof rail trim - 1 - downward from mounts - 3 - (4x).
- When installing, guide centering pin - 2 - into mount - 4 -.
