Rear Side Trim, Removing and Installing

Rear Side Trim, Removing And Installing

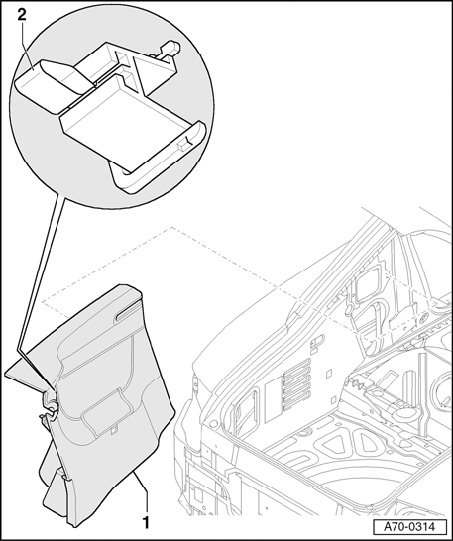

1 - Side trim
- Remove rear seat bench and backrest.
- Remove outer seat belt anchorage point
- Remove striker pin of rear seat backrest
- Starting from top rear, unfasten side trim - 1 - from clips - 2 - (8x).

2 - Clips

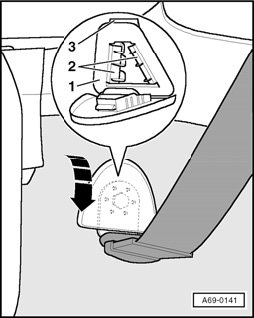

Removing outer seat belt anchorage point
- Flip open cover flap - 1 - in direction of - arrow -.
- Remove bolt.
- Tightening torque 55 Nm







Removing striker pin
- Loosen nut - 2 -.
- Remove striker pin - 1 -.
- When installing, adjust striker pin.

- Luggage compartment side trim - 4 -.
- Threaded plate - 5 -.
- Side trim - 6 -.
