C-Pillar Trim

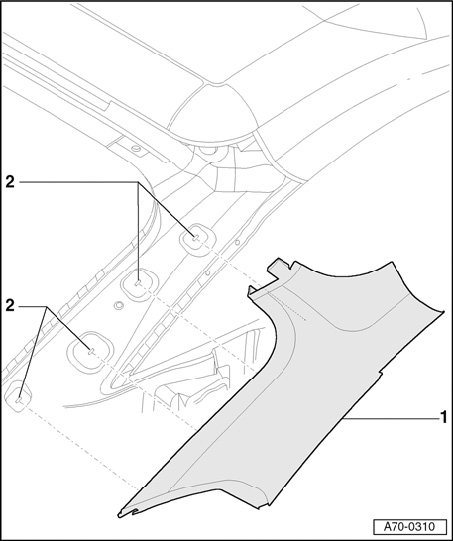

Upper C-pillar Trim, Removing And Installing







1 - C-pillar trim.

- Removing
- Remove side trim.
- Unclip roof rail trim in area of upper C-pillar trim - 1 -.
- Unclip upper C-pillar trim - 1 -.
- Detach luggage compartment trim from upper C-pillar trim - 1 -.

- Installing
- Fasten upper C-pillar trim - 1 - in mountings - 2 - (4x).

2 - Mountings
