Sun Visors, Removing and Installing

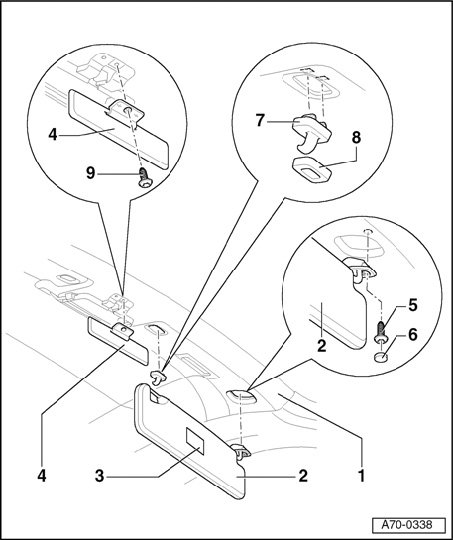

Sun Visors, Removing And Installing







1 - Molded headliner
2 - Sun visor
- Unclip sun visor - 2 - from holder - 7 -, unclip cap - 6 - and remove screw - 5 -.
3 - Sticker
- Airbag sticker only applies for Japan
- When replacing sun visor, install new airbag sticker.
- Apply airbag sticker in center
4 - Centre sun visor
- Remove screw - 9 -.
5 - Screw
- Tightening torque 1.5 Nm
6 - Screw cap
7 - Sun visor holder
- Use screwdriver to pry off cap - 8 -, starting from rear.
- Press sun visor holder - 7 - firmly to one side and pull out sun visor holder - 7 -.
8 - Cap
- Use screwdriver to pry off cap - 8 -, starting from rear.
9 - Screw
- Tightening torque 1.5 Nm
