Glove Box, Removing and Installing

Glove Box, Removing And Installing

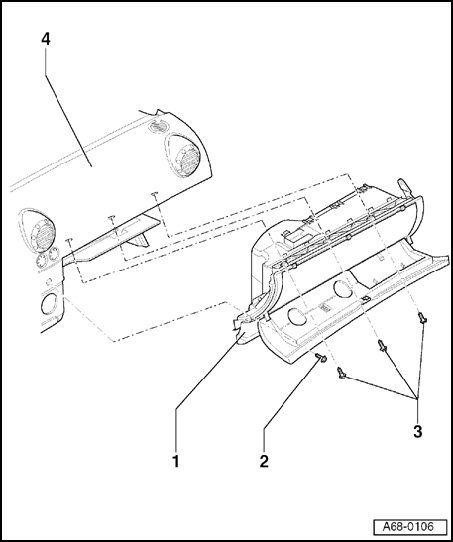

1 - Glove box

- Removing
- Unclip instrument panel end trim.
- Disconnect connector for glove box light.
- Remove screws on side.
- Remove screw - 2 -.
- Open glove box lid and remove screws - 3 - (3x).
- Pull sides of frame outward.
- Take out glove box downward.
- Disconnect connector for passenger airbag key switch.

- Installing
- Pull sides of frame outward.
- Install glove box with inner side first.
- Remainder of installation is performed in reverse order of removal.

2 - Screw (1x)
- Tightening torque 3.5 Nm
3 - Screws (3x)
- Tightening torque 3.5 Nm
4 - Instrument panel







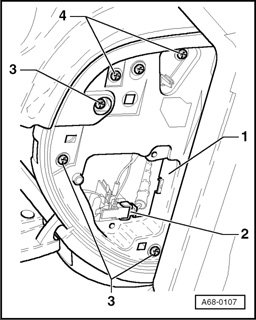

Disconnect glove box connector and removing screws on side
- Disconnect connector - 2 -.
- Remove screws - 3 - (3x).







Disconnect connector for front passengers airbag key switch
- Press release mechanism - 3 - and pull connector plug - 2 - out of switch - 1 -.
