Radio Flap, Removing
Radio Flap, Removing
Radio Flap, Removing

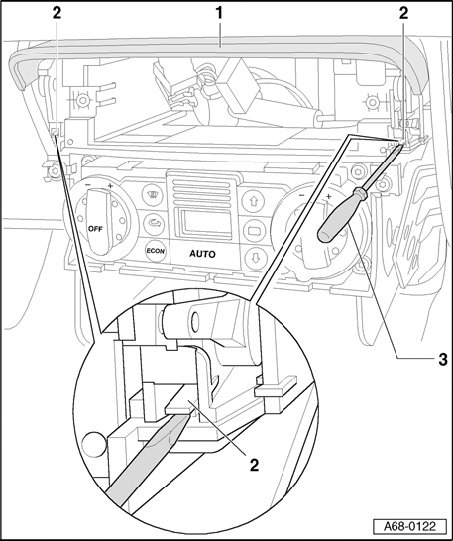

1
-
Radio flap
-
Remove radio.
-
Unclip trim molding
-
Use screwdriver - 3 - to press up retainer tabs - 2 - (2x) and pull out radio flap - 1 -.
2
-
Retainer tabs
3
-
Screwdriver
