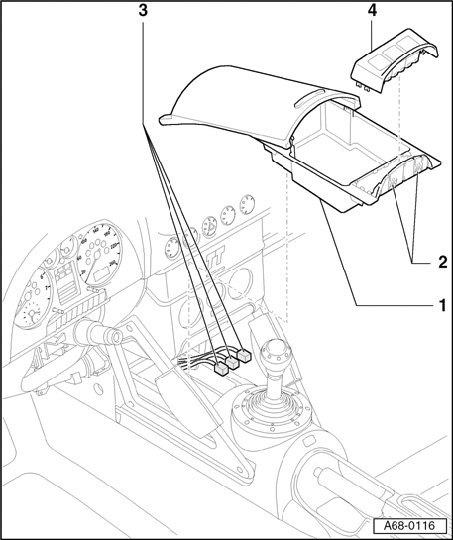

Tray on Rear Section of Center Console, Overview

Tray On Rear Section Of Center Console, Overview







1 - Tray
- Slightly open lid of tray - 1 -.
- Remove switch console - 4 -.
- Disconnect connectors - 3 - (3x).
- Use screwdriver to release retainer tabs - 2 - (2x).
- Use flat screwdriver to press down center catch (between retainer tabs - 2 -).
2 - Retainer tabs
3 - Connector (3x)
4 - Switch console
- Unclip switch console - 4 - at top.
- Disconnect harness connectors - 3 - (3x).
