Home >> Audi >> 2005 >> TT Coupe (8N3) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Shift Lever Trim Housing, Removing

Shift Lever Trim Housing, Removing



Shift Lever Trim Housing, Removing

- Remove rear section of center console
- Twist off shift lever knob.







- Remove screws - 2 - (4x). Tightening torque 4 Nm

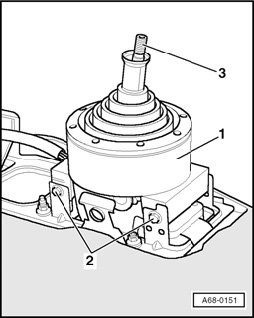

- Pull shift lever trim housing - 1 - over shift lever - 3 -.
