Rear Section of Center Console, Removing and Installing

Rear Section Of Center Console, Removing And Installing

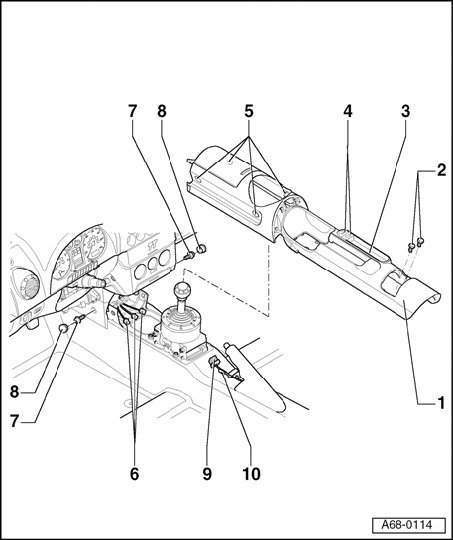

1 - Rear section of center console

- Removing
- Pull parking brake lever up as far as it will go.
- Remove lid from center console.
- Remove screws - 2 - (2x).
- Remove grab handles on center console.
- For easier removal, pry out screw caps - 8 - to facilitate removal.
- Remove screws - 7 - (2x).
- Pull apart footwell vent trim.
- Pull apart rear section of center console - 1 - at mounts - 5 -.
- Lift rear section of center console - 1 - (at rear seat) over rear seat.
- Pull rear section of center console - 1 - out from under footwell vent trim to the rear.
- Lift out rear section of center console - 1 - forward over parking brake lever.
- Turn rear section of center console - 1 - and disconnect connectors - 6 -, - 9 - and - 10 -.

- Installing
- Slide rear section of center console - 1 - under footwell vent trim.

2 - Screws (2x)
- Tightening torque 3.5 Nm
3 - Tray
4 - Central locking switch
5 - Mounts (4x)
6 - Connectors for switches in center console (3x)
7 - Screws (2x)
- Tightening torque 3.5 Nm
8 - Screw caps (2x)
9 - Connector for central locking switch - 4 -.
10 - Connector for light "Airbag OFF"
