Lid At Rear Section of Center Console, Removing and Installing

Lid At Rear Section Of Center Console, Removing And Installing

- Lid underneath parking brake lever







- Pry up lid located under parking brake lever - 3 - at front.
- Following direction of arrow, pull lid located under parking brake lever - 3 - out of center console - 1 -.

- Rear lid
- Remove rear lid - 2 - vertically.

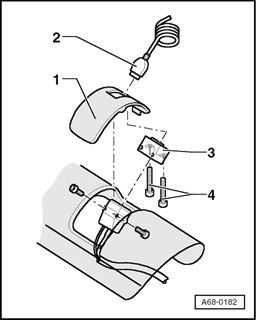

- Rear cover with portable phone connector







- Remove rear lid - 1 - upward.
- Cover lid - 1 - can be moved downward to remove centre console.
- Remove screws - 5 - (2x). Tightening torque 0.8 Nm
- Remove connector - 5 - from bracket - 3 -.

2 - Connector for handset holder.
4 - Bracket screws, tightening torque 0.8 Nm
