Front Section of Center Console, Removing and Installing

Front Section Of Center Console, Removing And Installing

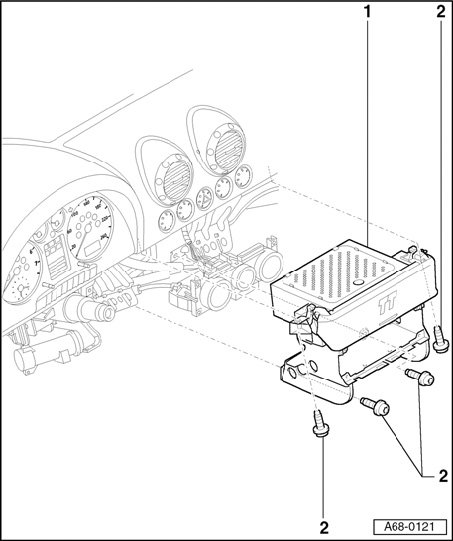

1 - Front section of center console

- Removing
- Remove glove box
- Remove drivers storage compartment
- Remove grab handles on center console
- Remove front ashtray
- Remove center console trim molding
- Remove AC control panel/heating controls.
- Remove screws - 2 - (4x).

2 - Screws (4x)
- Tightening torque 3.5 Nm
