Luggage Compartment Floor Lining, Removing

Luggage Compartment Floor Lining, Removing

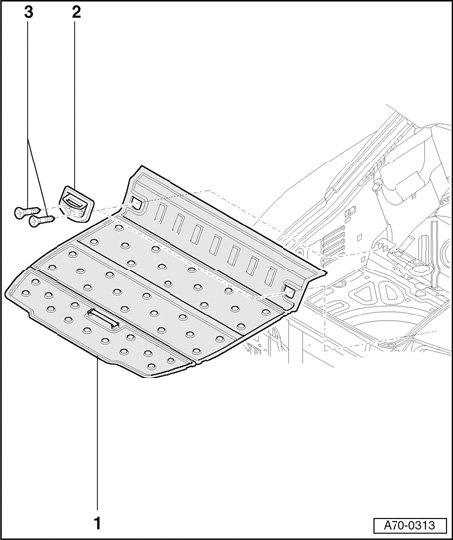

1 - Luggage compartment floor lining
- Remove bolts - 3 - (4x) from fastening rings - 2 - on left and right.
- Fold down rear-seat backrests.
- Remove luggage compartment floor lining - 1 - forward.
2 - Fastening rings
3 - Screws (4x)
- Tightening torque 4.5 Nm
