Rear Fender Liner: Service and Repair

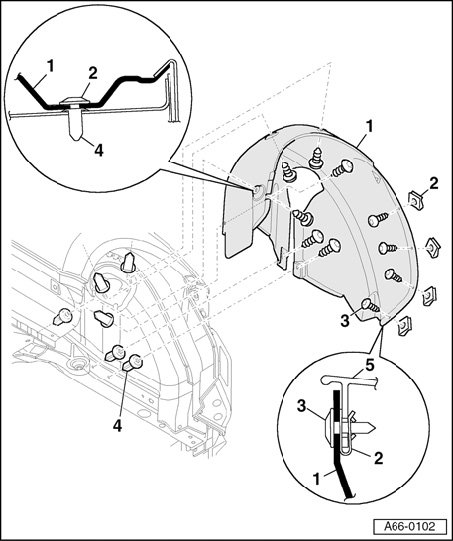

Rear Wheelhousing Liner







1 - Rear wheelhousing liner
- Remove rear wheel before removing wheelhousing liner.
- Remove bolts - 2 -.
- Take out wheelhousing liner downward.
2 - Speed nuts (4x)
3 - Self-tapping screw (10x)
- 1.5 Nm
4 - Expanding nut
