Convertible Top Cover Molding, Removing and Installing

Convertible Top Cover Molding, Removing And Installing

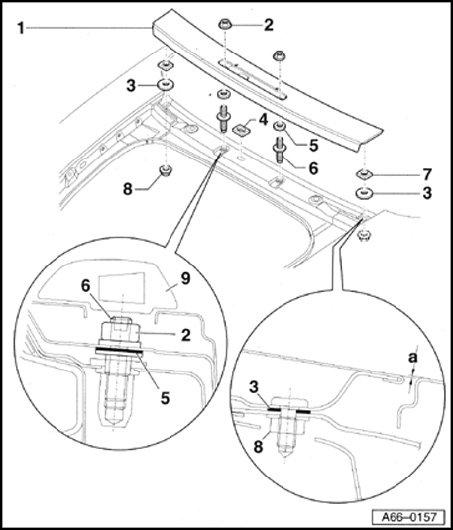

1 - Convertible top cover molding
- Remove high mounted brake light.

- Remove six-sided nuts - 2 -.
- Loosen convertible top cover trim in area of six-sided nuts - 8 - and carefully press to front.
- Remove cover molding upward.
2 - Six-sided nut
- 20 Nm
3 - Washer
- Ensure cover molding is flush with vehicle body.
- - a - = 0.1 mm ± 0.3 mm







4 - Spacer for cover molding
5 - Adhesive disk
- Glued to cover molding.
6 - Adjusting screw
- Cover molding height can be adjusted by tightening or loosening adjusting screws.
- When tightening six-sided nut, - 2 - use socket wrench to avoid stripping adjusting screw.
7 - Spacer
8 - Six-sided nut
- 8 Nm
9 - High mounted brake light
