Fuel Door Release Actuator: Service and Repair

Lock Actuator For Fuel Filling Flap, Removing And Installing

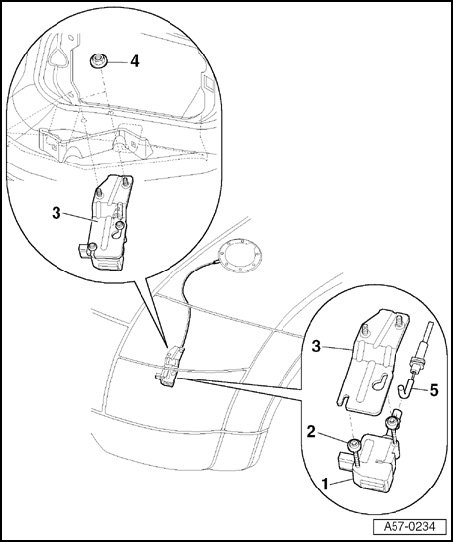

1 - Actuator for fuel filler flap
- Side luggage compartment trim removed.
- Disconnect electrical harness connector for actuator.
- Loosen bolts - 2 - and remove actuator from elongated holes.
- Remove actuator from bracket - 3 - and unclip Bowden cable - 5 -.
2 - Torx bolt
- 2 Nm
3 - Bracket for actuator
4 - Hex nut
- 8 Nm
5 - Bowden cable for fuel filler flap
