Front Door Weatherstrip: Service and Repair

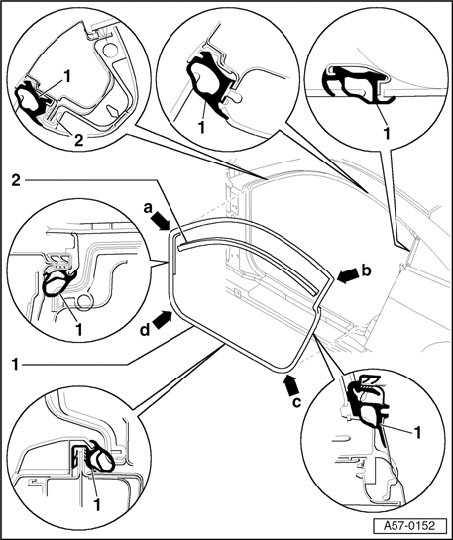

Door Seal, Removing And Installing







1 - Door seal
- Remove trim on lower part of A-pillar, on B-pillar and on sill panel.

Removing:
- Pull door seal off all round door flange and out of seal channels at top and at side window.

Installing:
- Press door seal into seal channel at top of B-pillar - arrow b - first.
- Then press seal into seal channel at top of A-pillar - arrow a -.
- Press door seal into seal channel on roof frame, starting at the center and then working along the whole length.







- Press door seal into side window seal channel at bottom.
- Then press fully into seal channel in area around side window, starting from center.
- Press door seal onto door flange at bottom of B-pillar - arrow c -.
- Press on door seal between side window and bottom of B-pillar starting in center.
- Press door seal onto door flange at bottom of A-pillar - arrow d -.
- Press door seal onto door flange between bottom of A-pillar and B-pillar, starting in the center.
- Completely press on door seal, starting in center between bottom and top of A-pillar.

2 - Weatherstrip
- Pressed onto flange on roof frame
