Rear Bumper Reinforcement: Service and Repair

Guide Piece, Removing And Installing

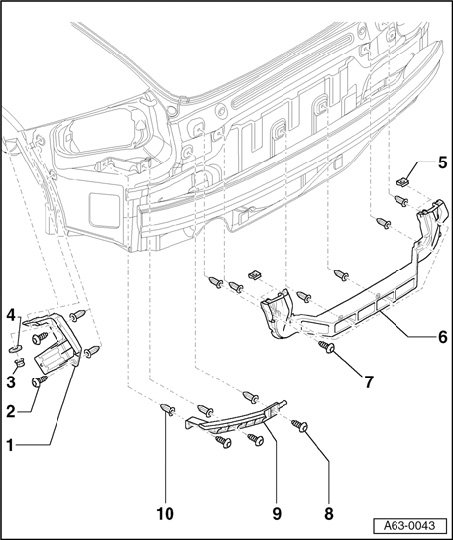

1 - Outer guide piece
- Remove bumper trim.
- To remove, unscrew hexagon nuts - 3 - and combi bolts - 2 -, then detach guide piece.
2 - Combi bolt
- 1.5 Nm
3 - Hexagon nut
- 6 Nm
4 - Washer
5 - Speed nut
6 - Center guide piece
- Remove bumper trim.
- To remove, unscrew combi bolts - 7 - and detach guide piece.







7 - Combi bolt
- 1.5 Nm
8 - Combi bolt
- 1.5 Nm
9 - Left guide piece
- Remove bumper trim.
- To remove, unscrew combi bolts - 8 - and detach guide piece.
10 - Expanding nut
