Read Measuring Value Block (Function 08)

Read Measuring Value Block (Function 08)

Performing the function "Read Measuring Value Block"

Indicated on display

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -8- to select "Read Measuring Value Block function 08.

Indicated on display

Rapid data transfer Q
08 - Read Measuring Value Block

- Confirm entry with the -Q- button.

Indicated on display

Read Measuring Value Block
Enter display group number XXX

- Enter display group number from table:
- Up to m.y. 2001.
- From m.y. 2002.
- Press Q button to confirm input.

The measuring value block which has been selected will appear in the standard format.

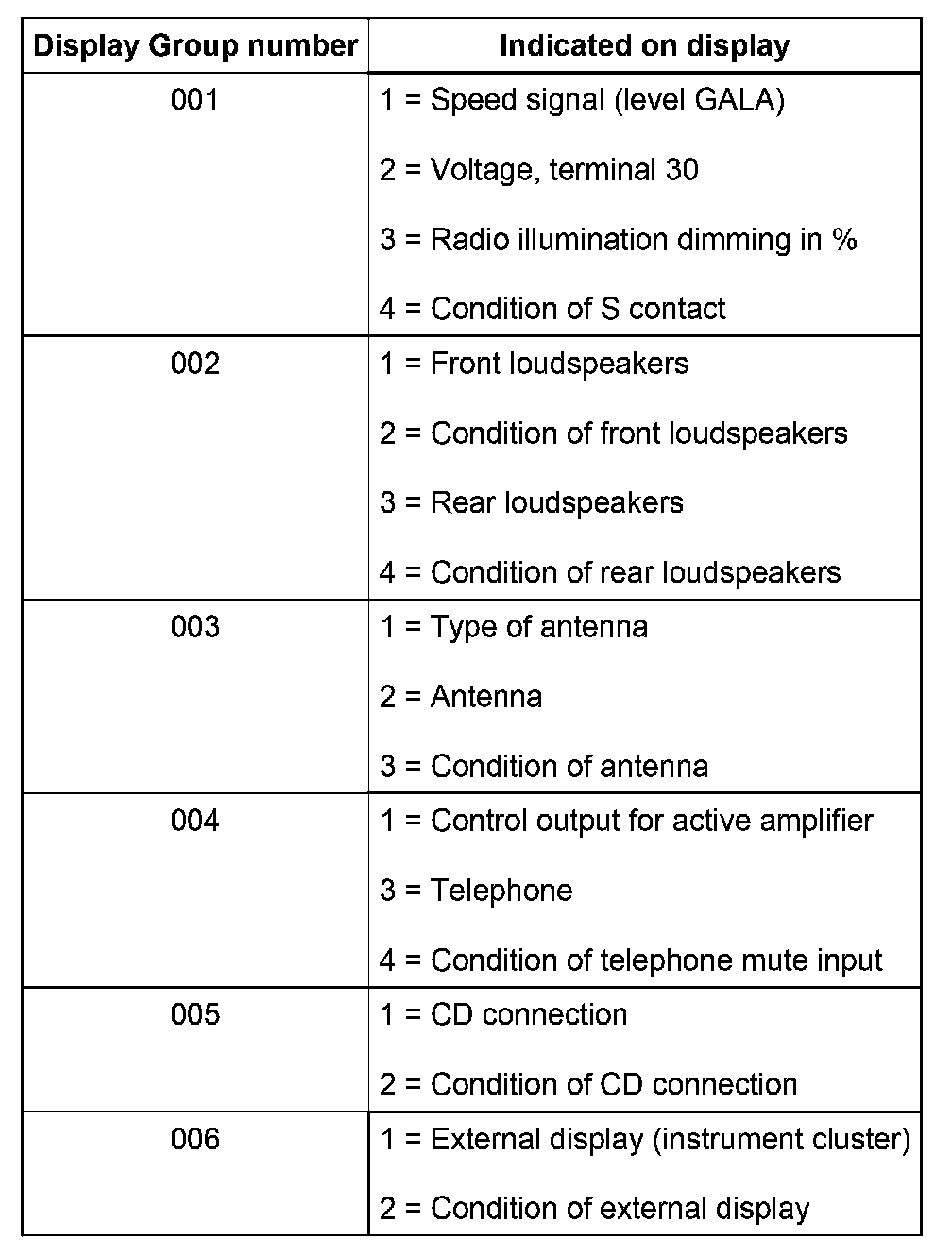

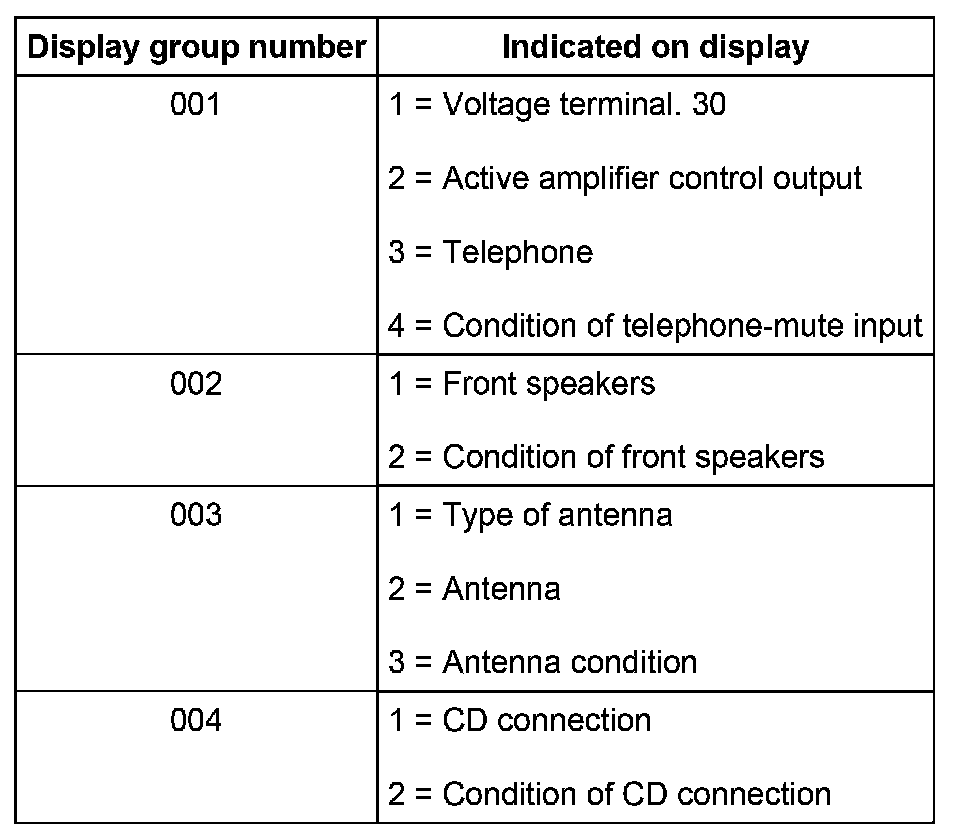

Display group overview up to m.y. 2001:







Display group overview from m.y. 2002:

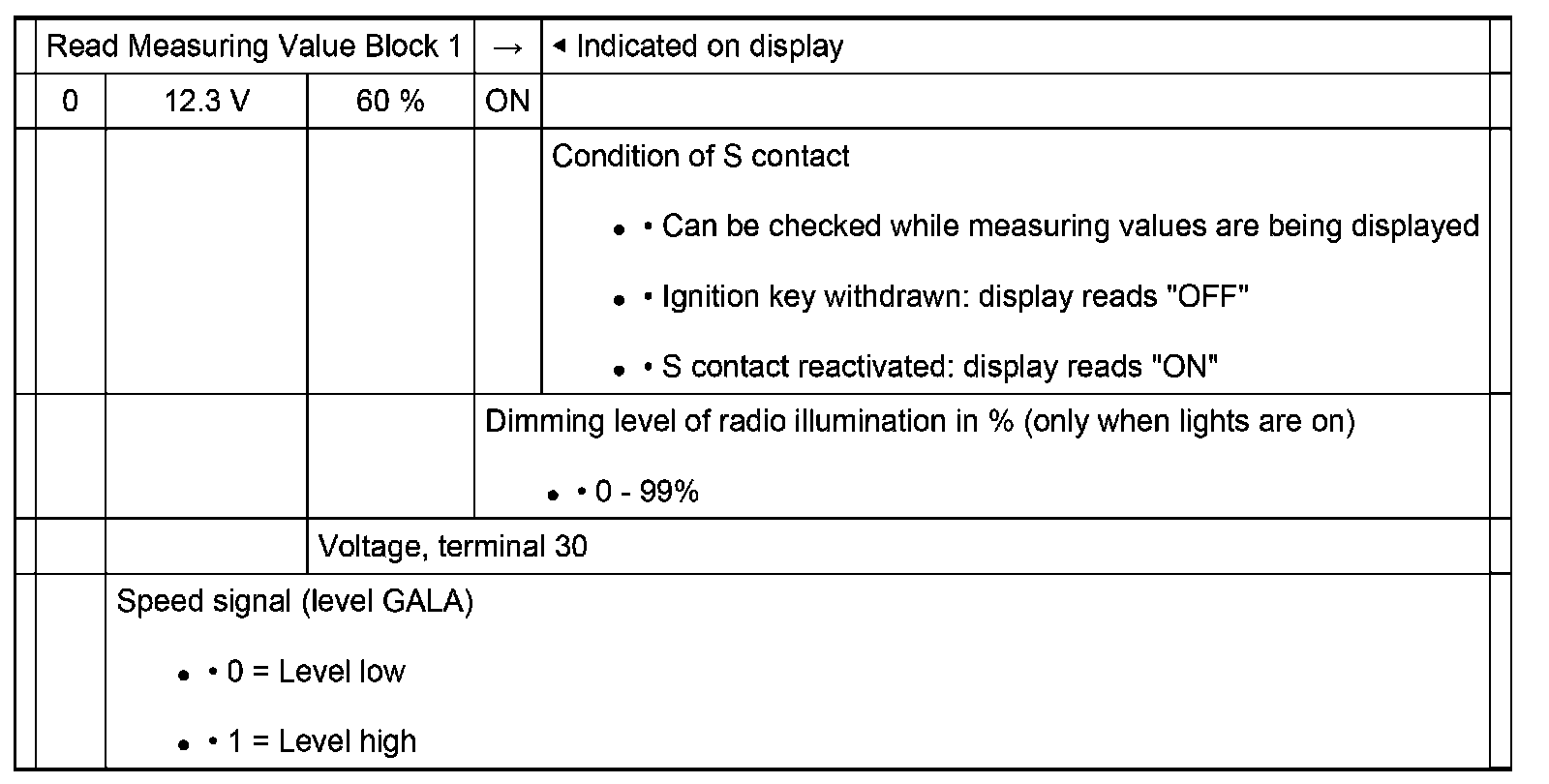

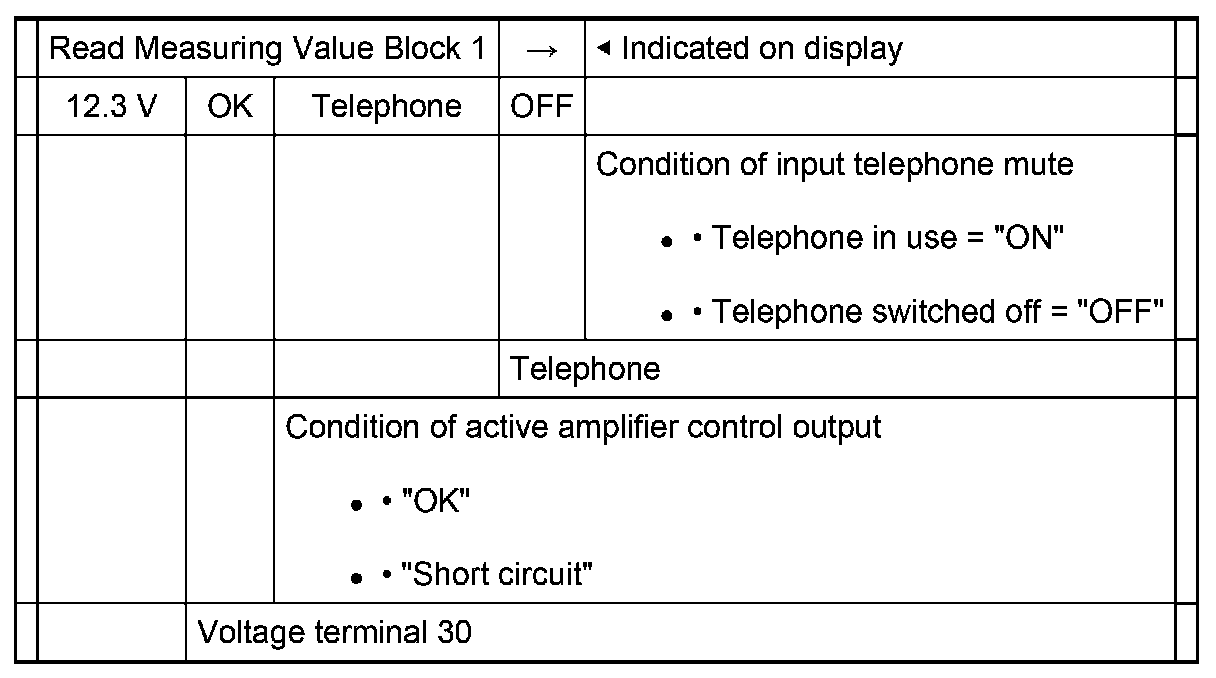

Measuring Value Block 001 up to m.y. 2001







Measuring Value Block 001 from m.y. 2002

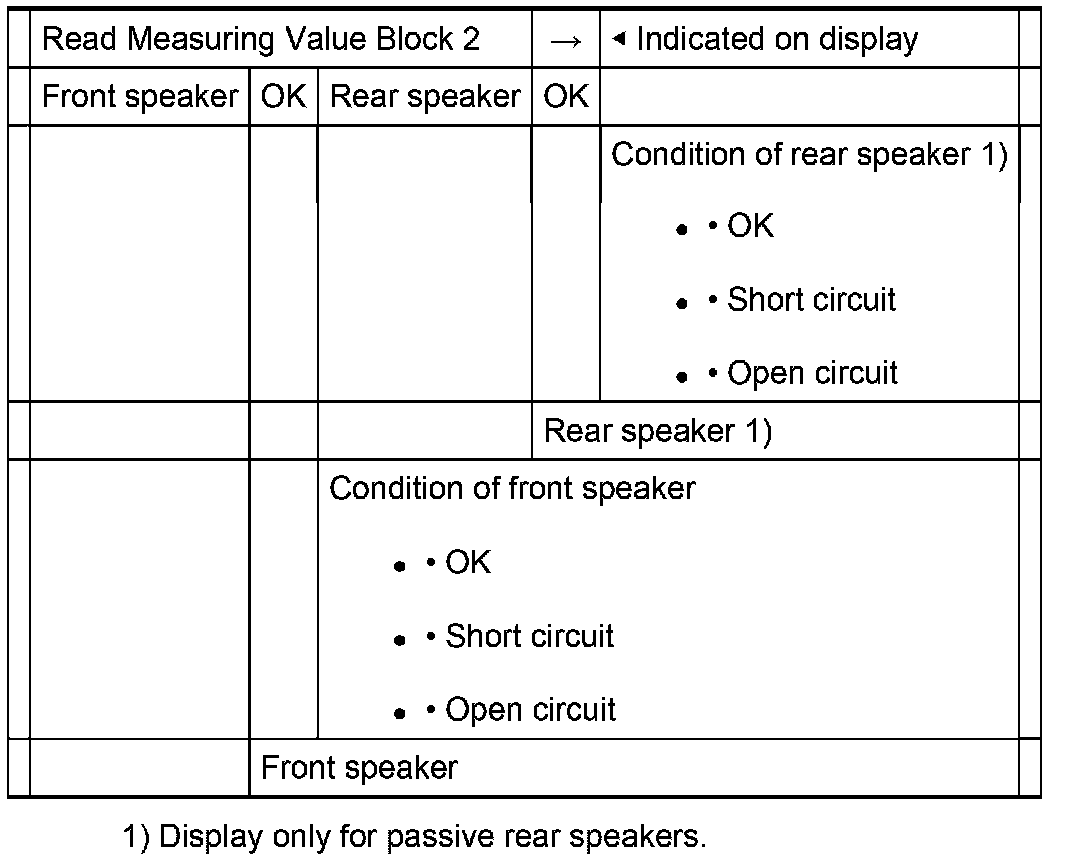

Measuring Value Block 002 up to m.y. 2001







Measuring Value Block 002 from m.y. 2002

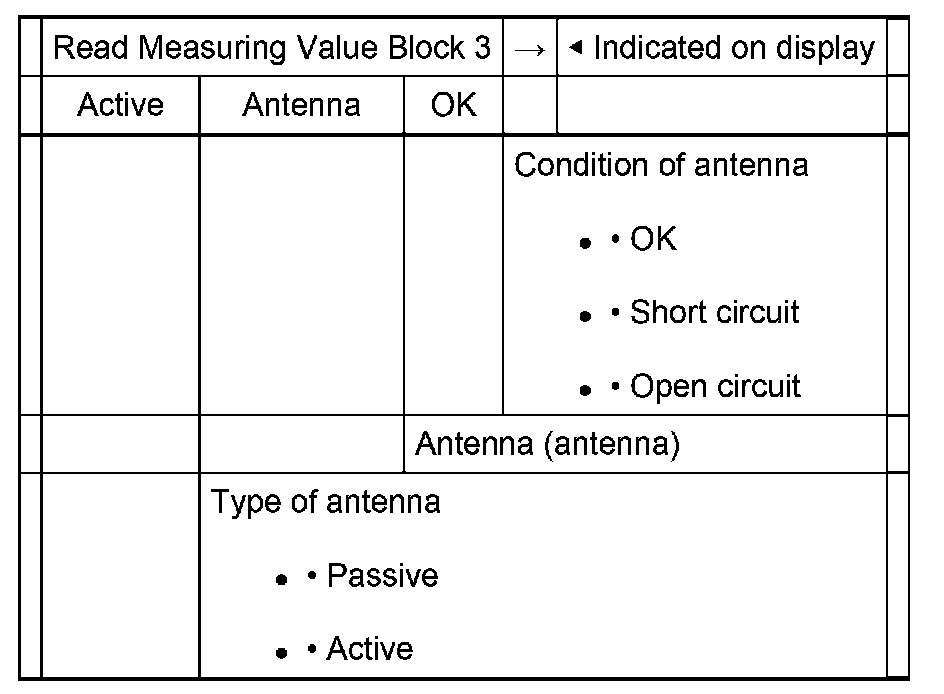

Measuring value block 003

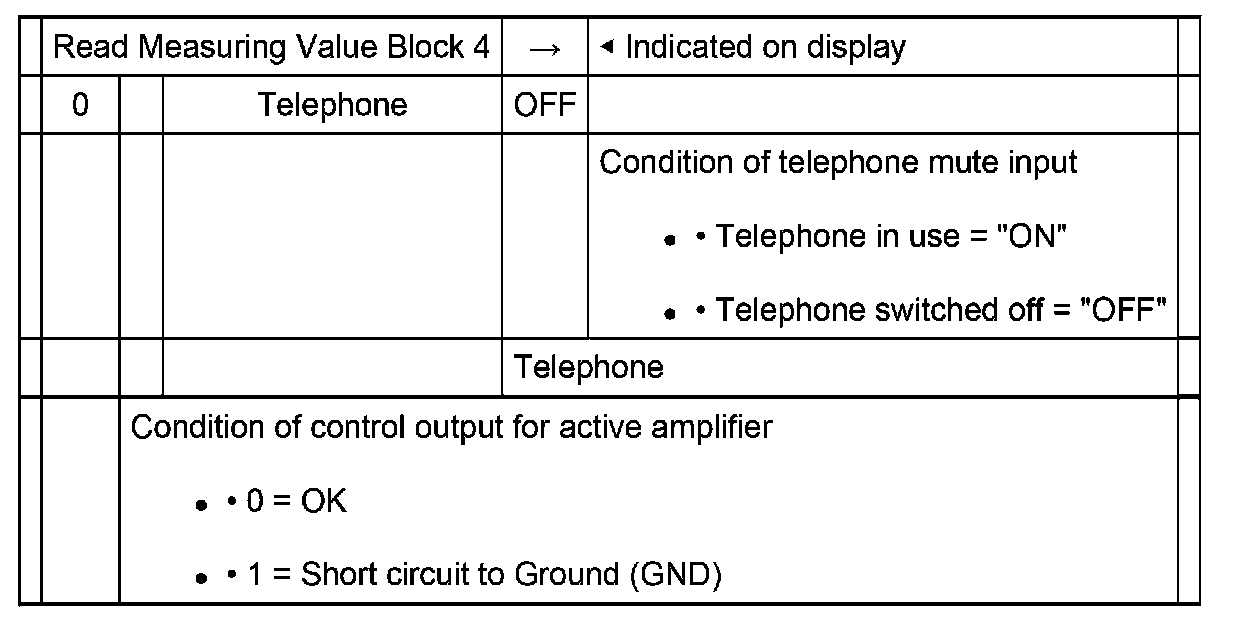

Measuring value block 004 up to m.y. 2001

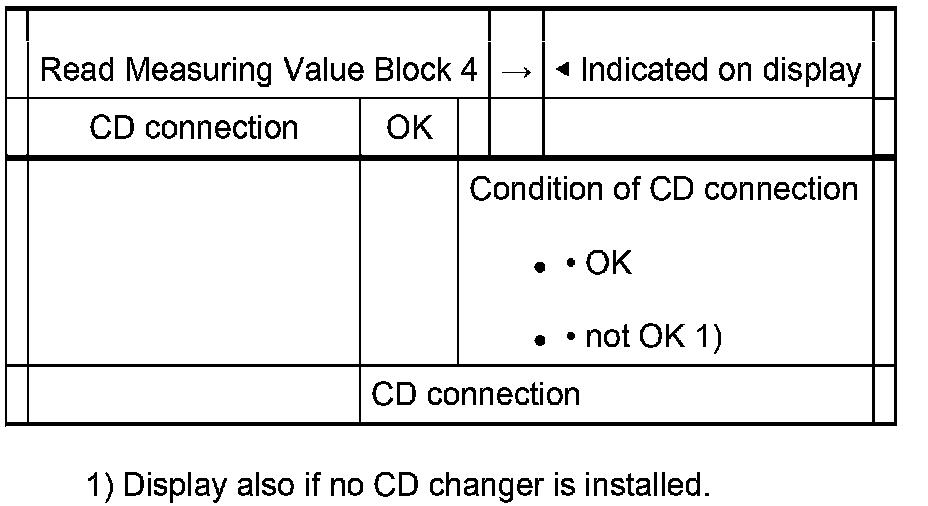

Measuring value block 004 from m.y. 2002

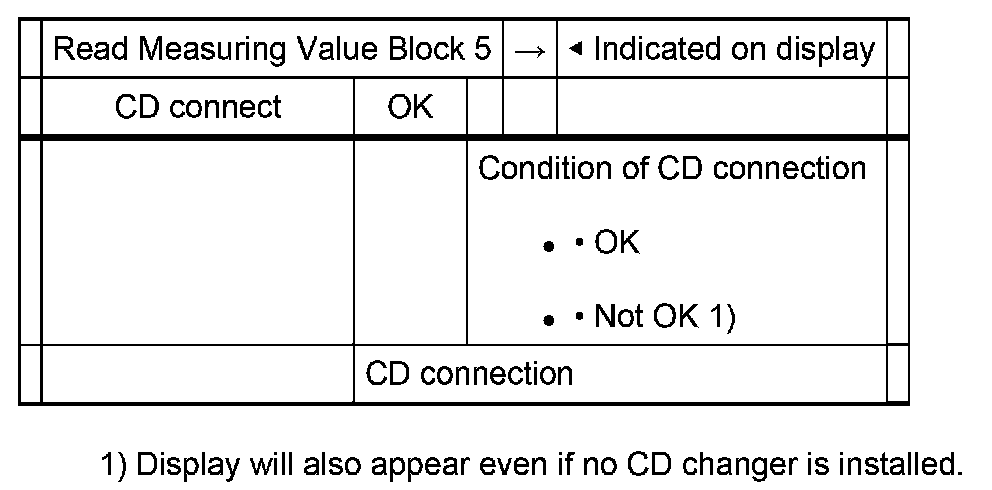

Measuring value block 005 up to m.y. 2001

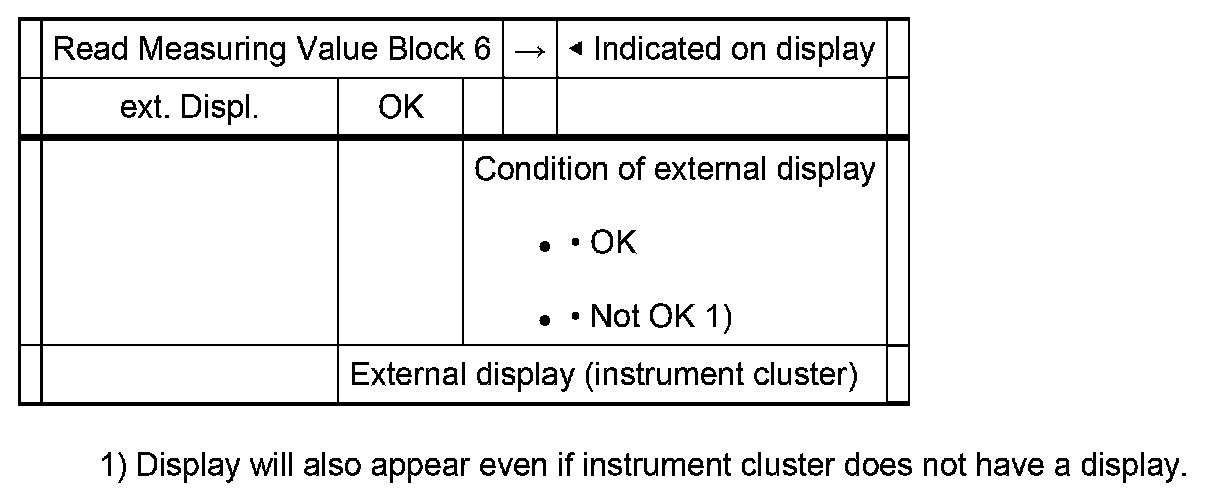

Measuring value block 006 up to m.y. 2001
