Read Measuring Value Block (Scan Tool Function 08)

Read Measuring Value Block (Function 08)

Initiating "Read Measuring Value Block"

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -8-. This selects "Read Measuring Value Block", function 08.

Indicated on display:

Rapid data transfer Q
08 - Read Measuring Value Block

- Press -Q- button to confirm input.

Indicated on display:

Read Measuring Value Block
Enter display group number XXX

- Enter display group number and press Q button to confirm input.

The selected measuring value block is now displayed in standard form.

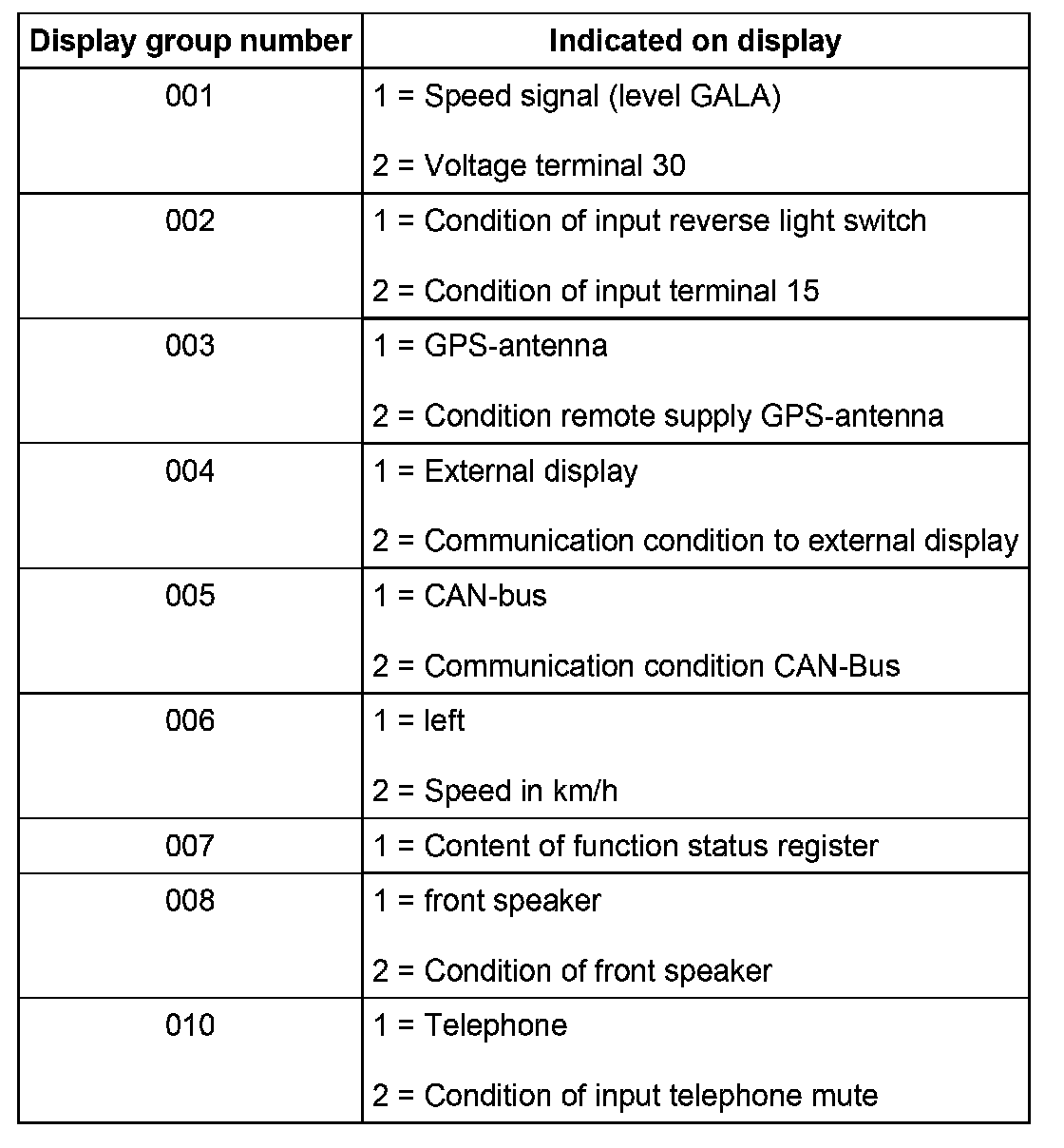

Display group overview:

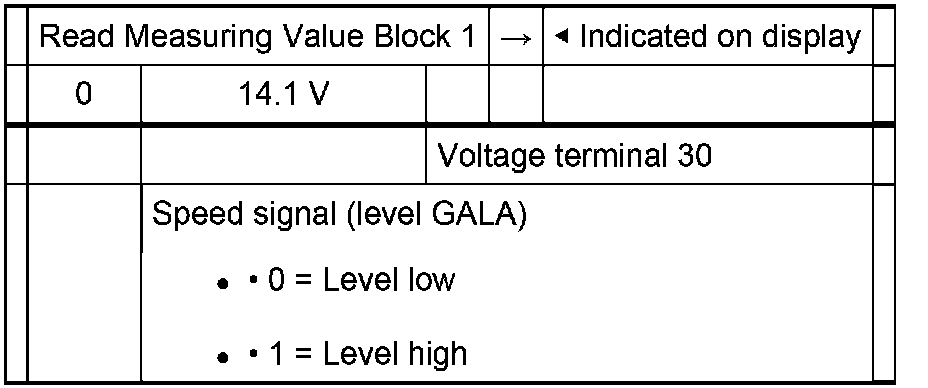

Measuring value block 001

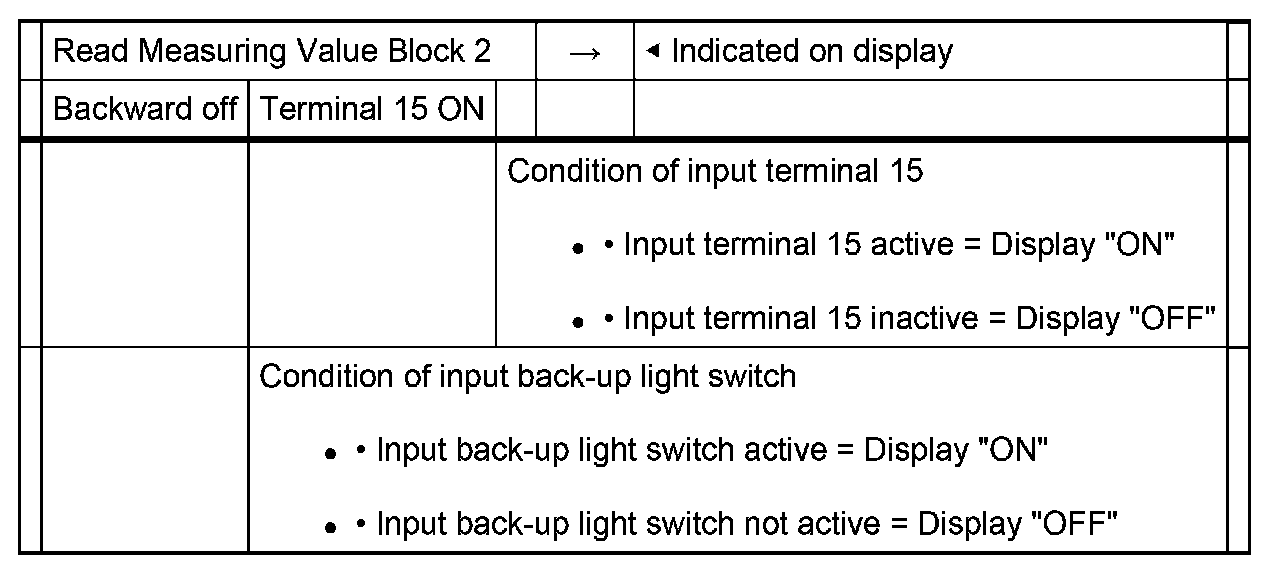

Measuring Value Block 002

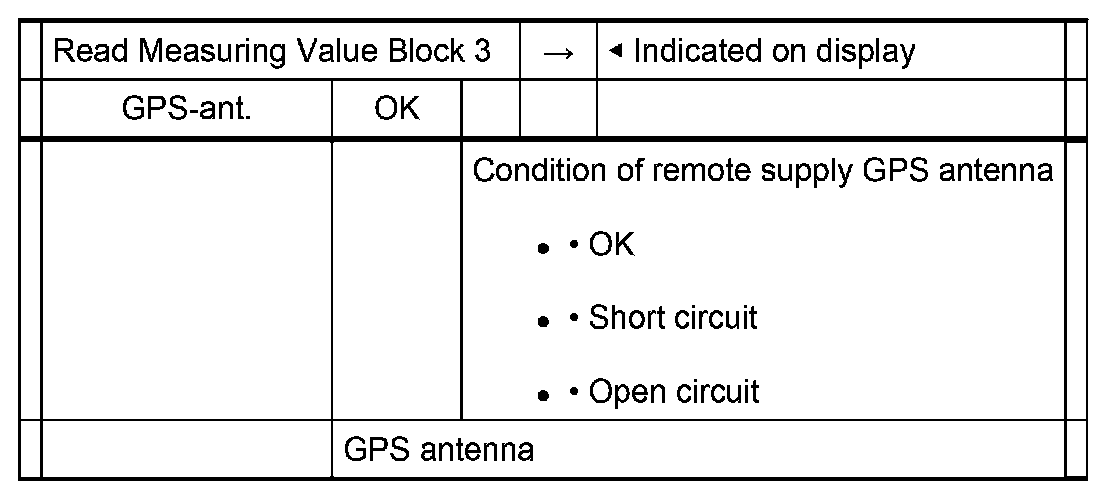

Measuring Value Block 003

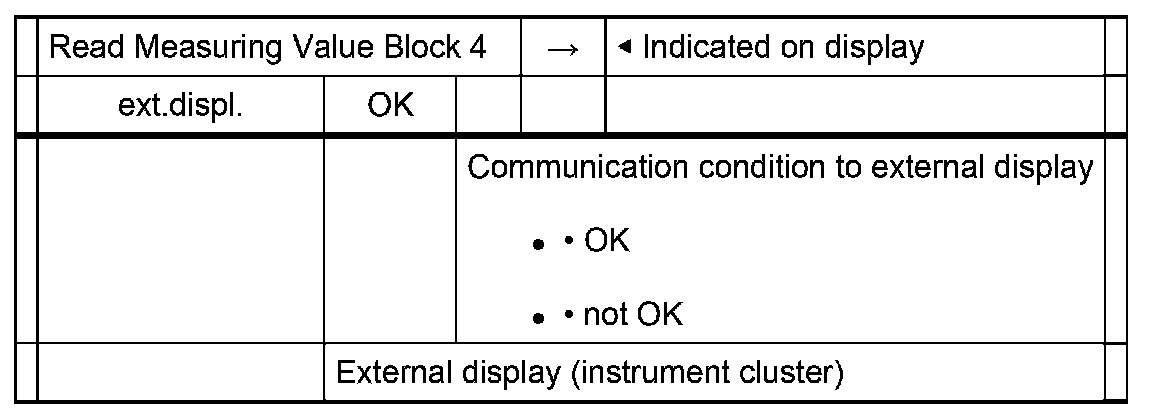

Measuring value block 004

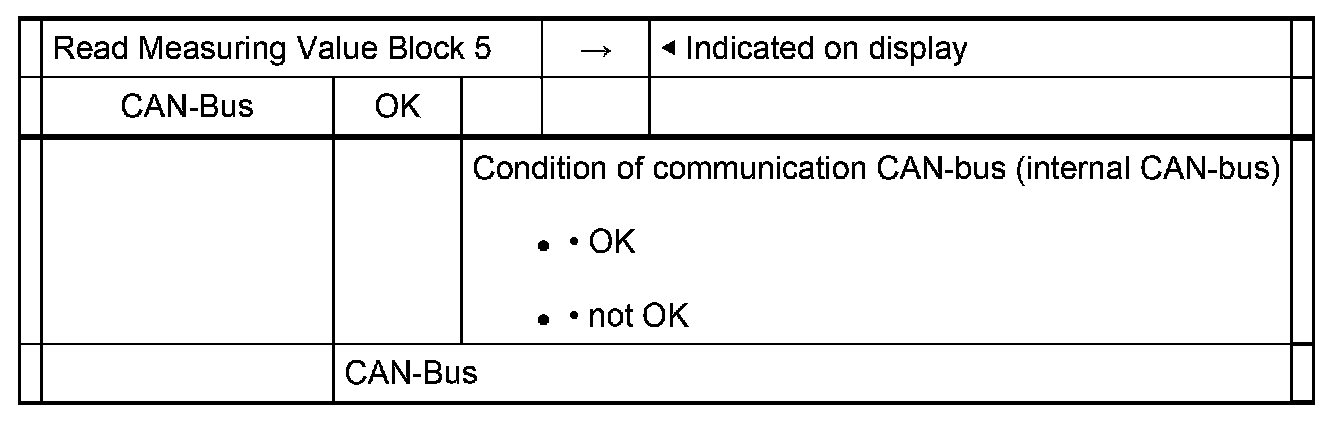

Measuring value block 005

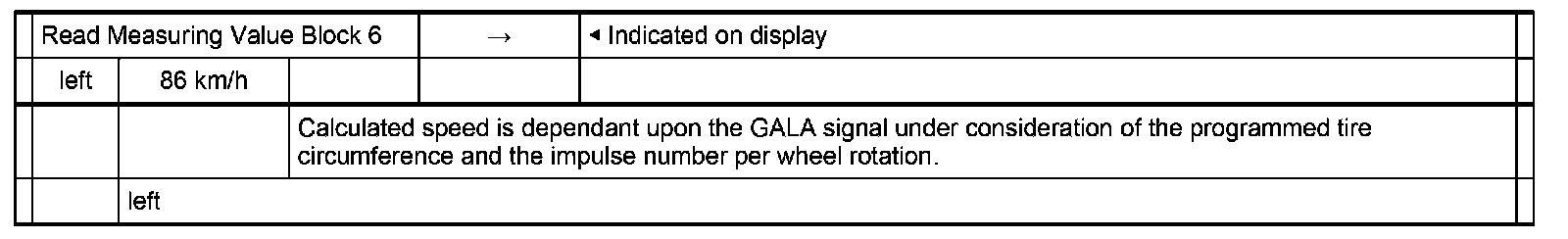

Measuring value block 006

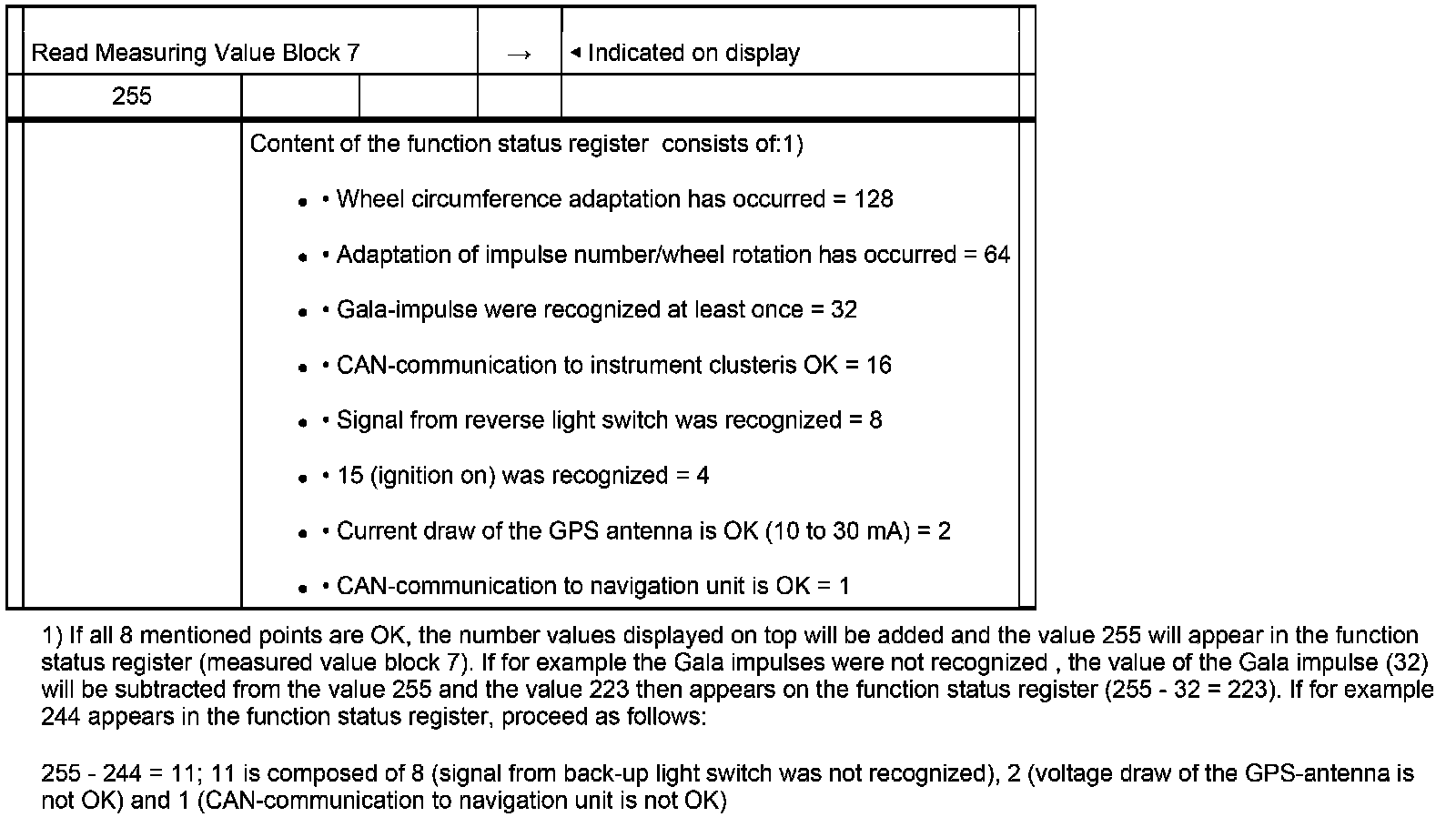

Measuring value block 007

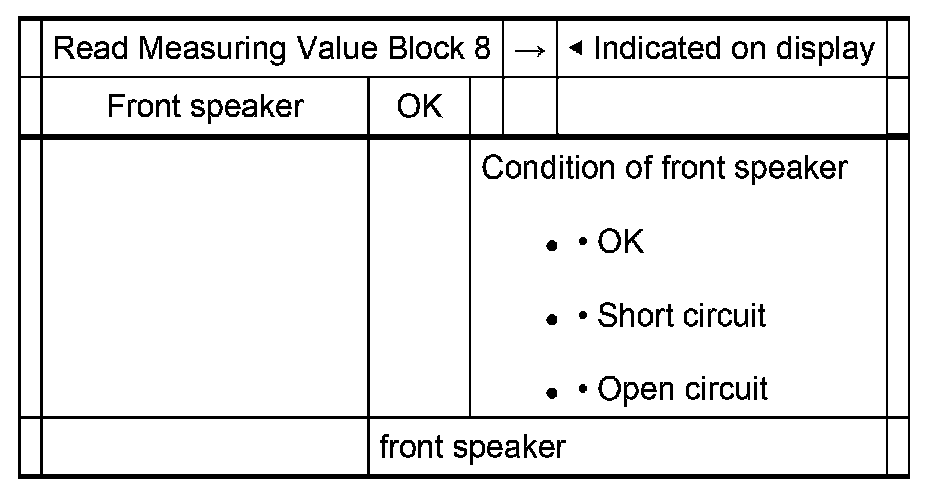

Measuring value block 008

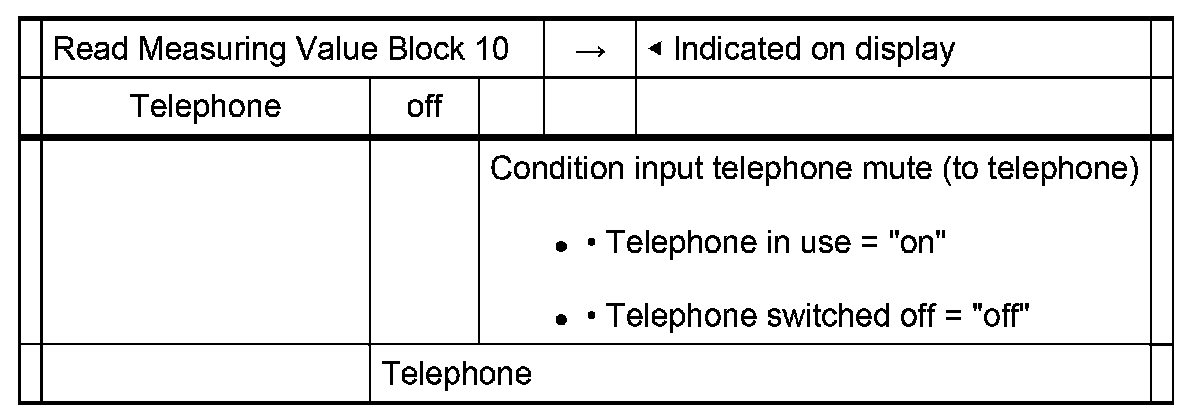

Measuring value block 010
