Read Measuring Value Block (Function 08)

Read Measuring Value Block (Function 08)

- Initiate On Board Diagnostic (OBD) of immobilizer Anti-Theft Immobilizer on Board Diagnostic (OBD), Initiating







Display on VAS 5051/5052:
- Select diagnostic function "08 - read measured value block" in selection -1-.







Display on VAS 5051/5052:
1 - Enter display group Max. input value = 255
- Enter desired display group number in button field -2-

Interpreting displayed information







Display on VAS 5051/5052:
1 - Display group X
2 - Display field 1
Display field 2
Display field 3
Display field 4

NOTE:
- If no display follows, a display field is not assigned.
- To switch to a different display group, proceed as follows:

Display group VAS 5051/5052 tester
higher Press s button.
Lower Press t button.

- Press "08 - Erase DTC Memory" to end function < - button.

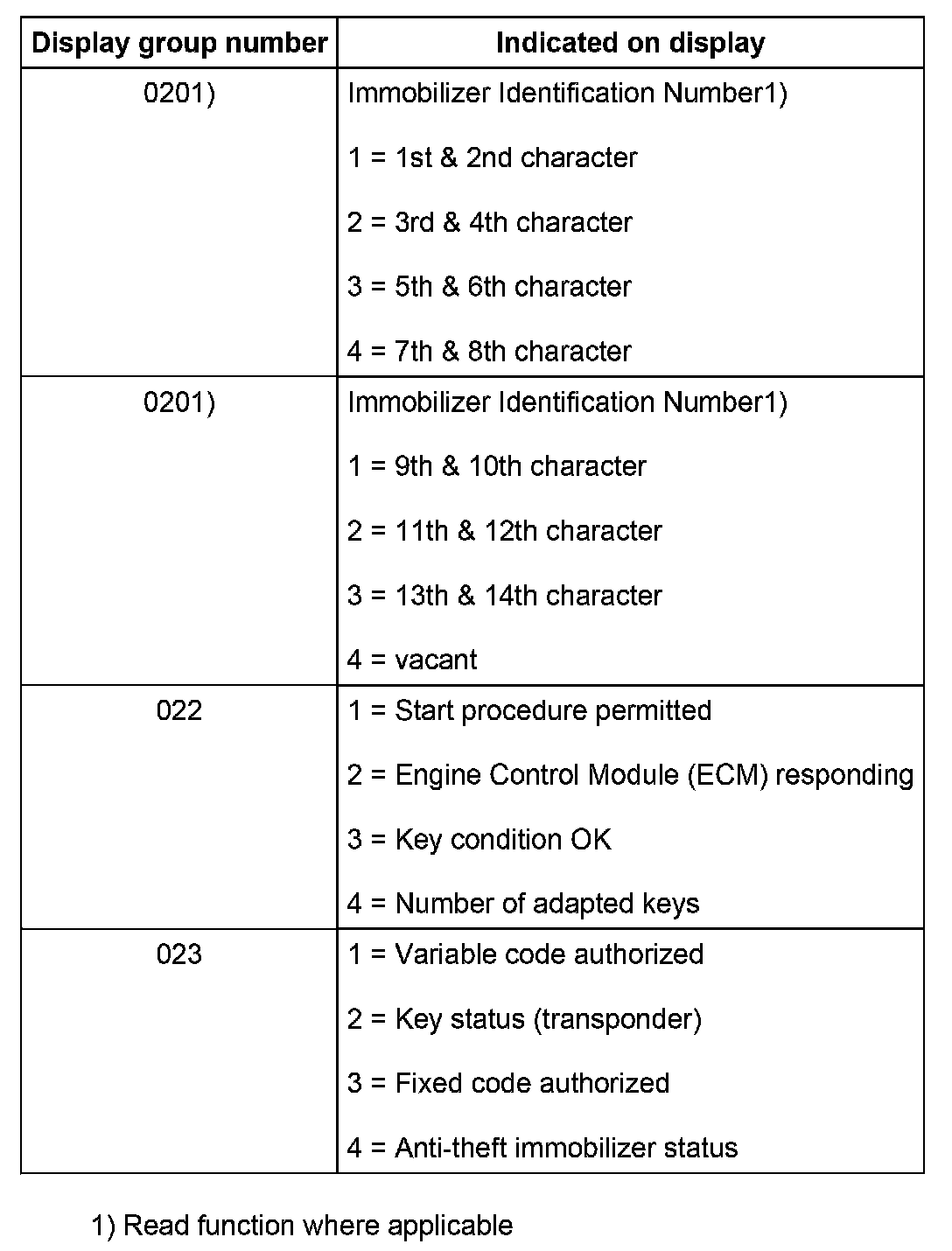

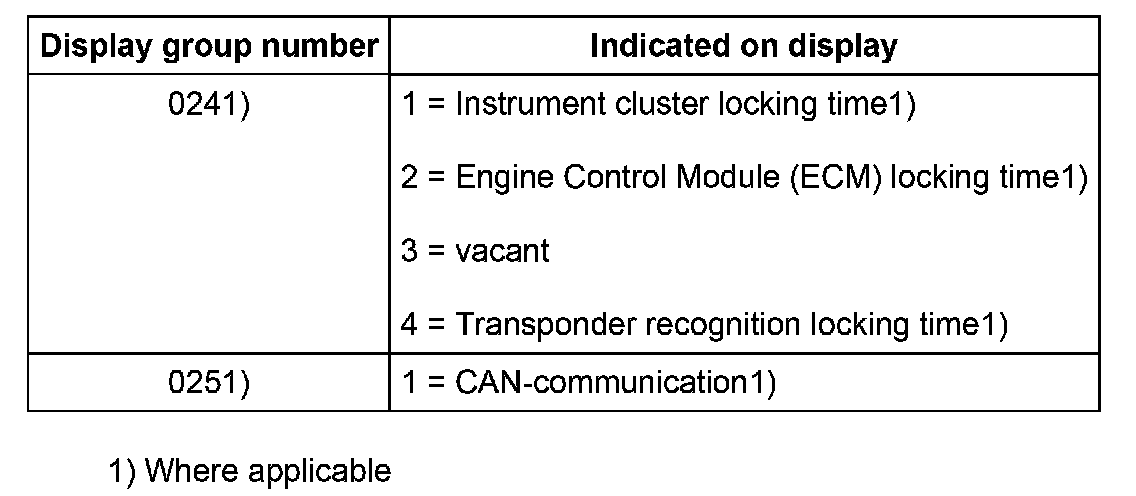

Display group overview

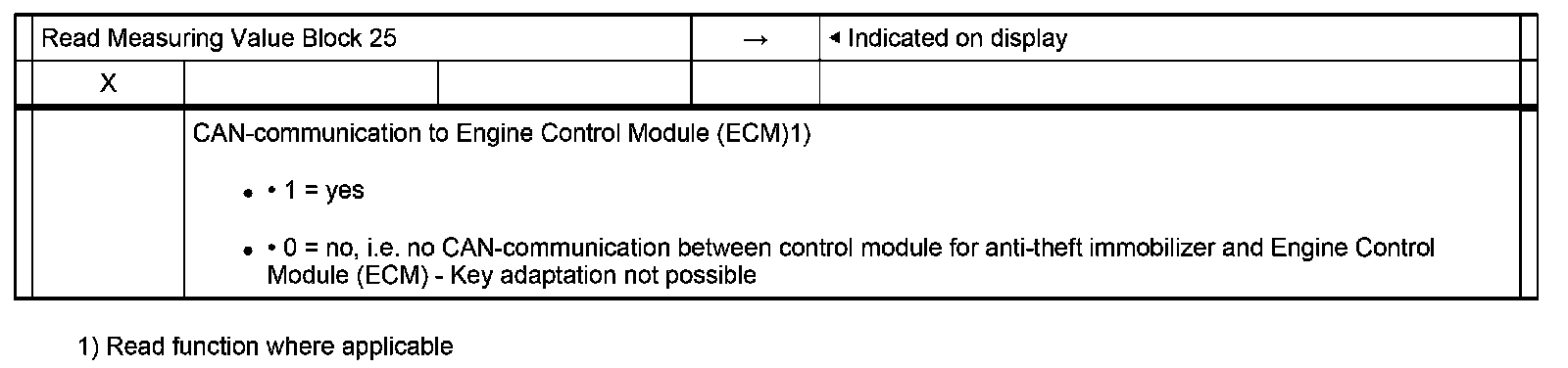

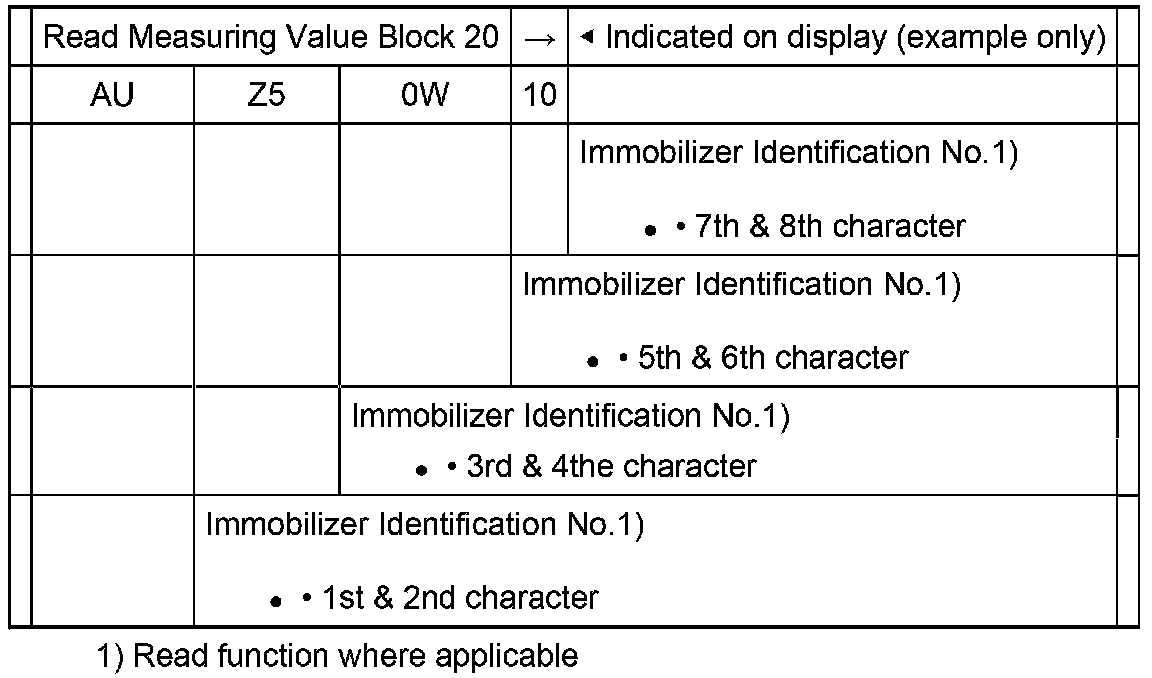

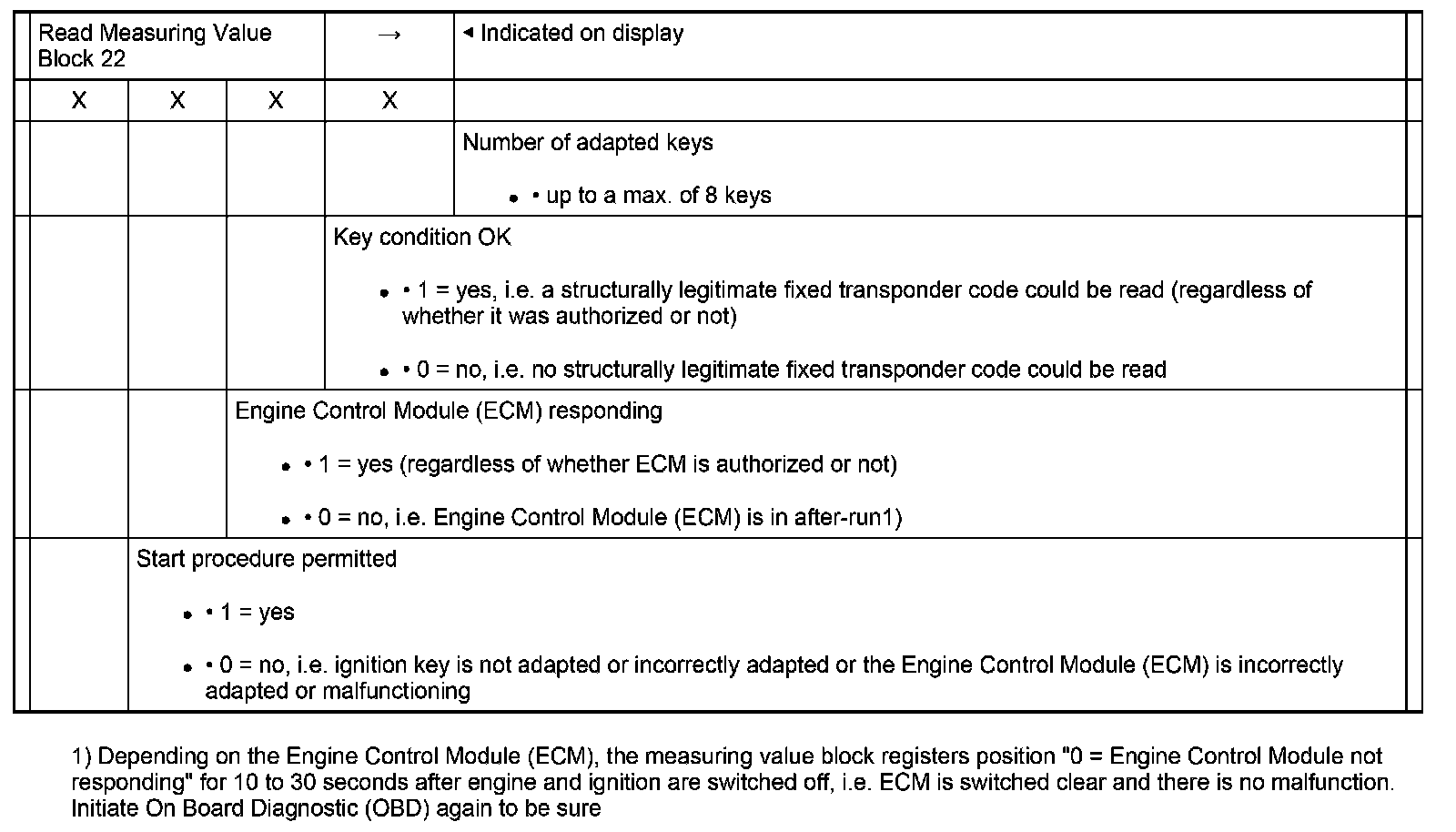

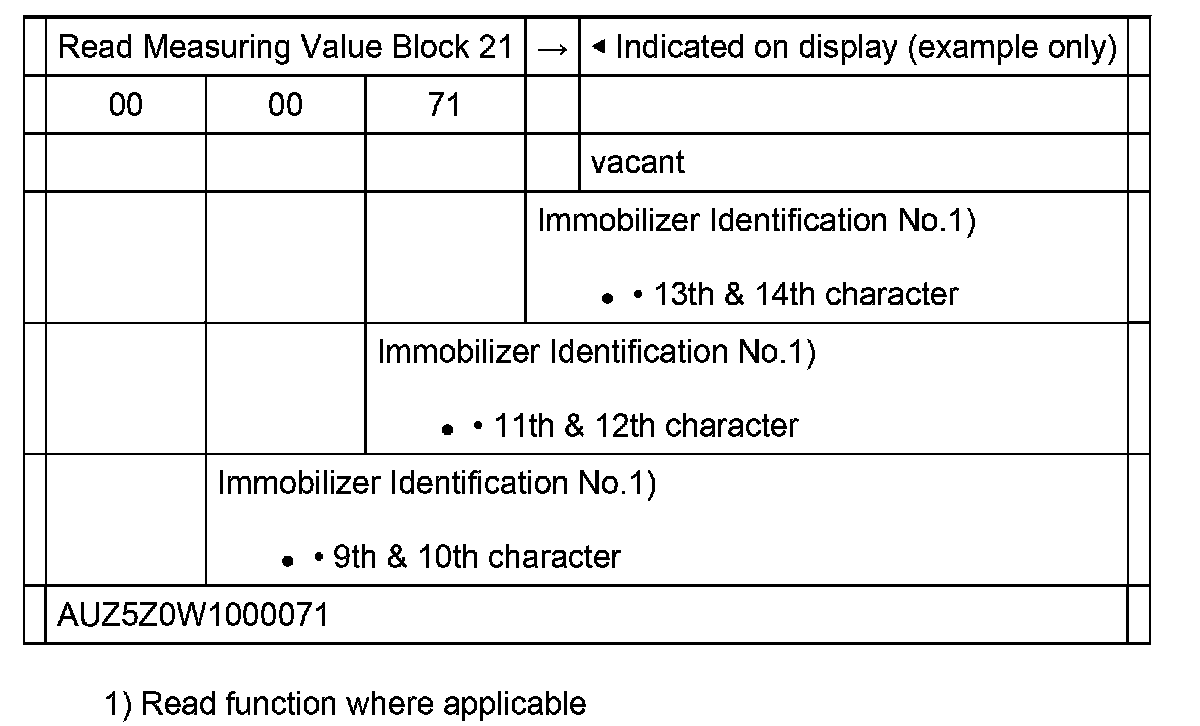

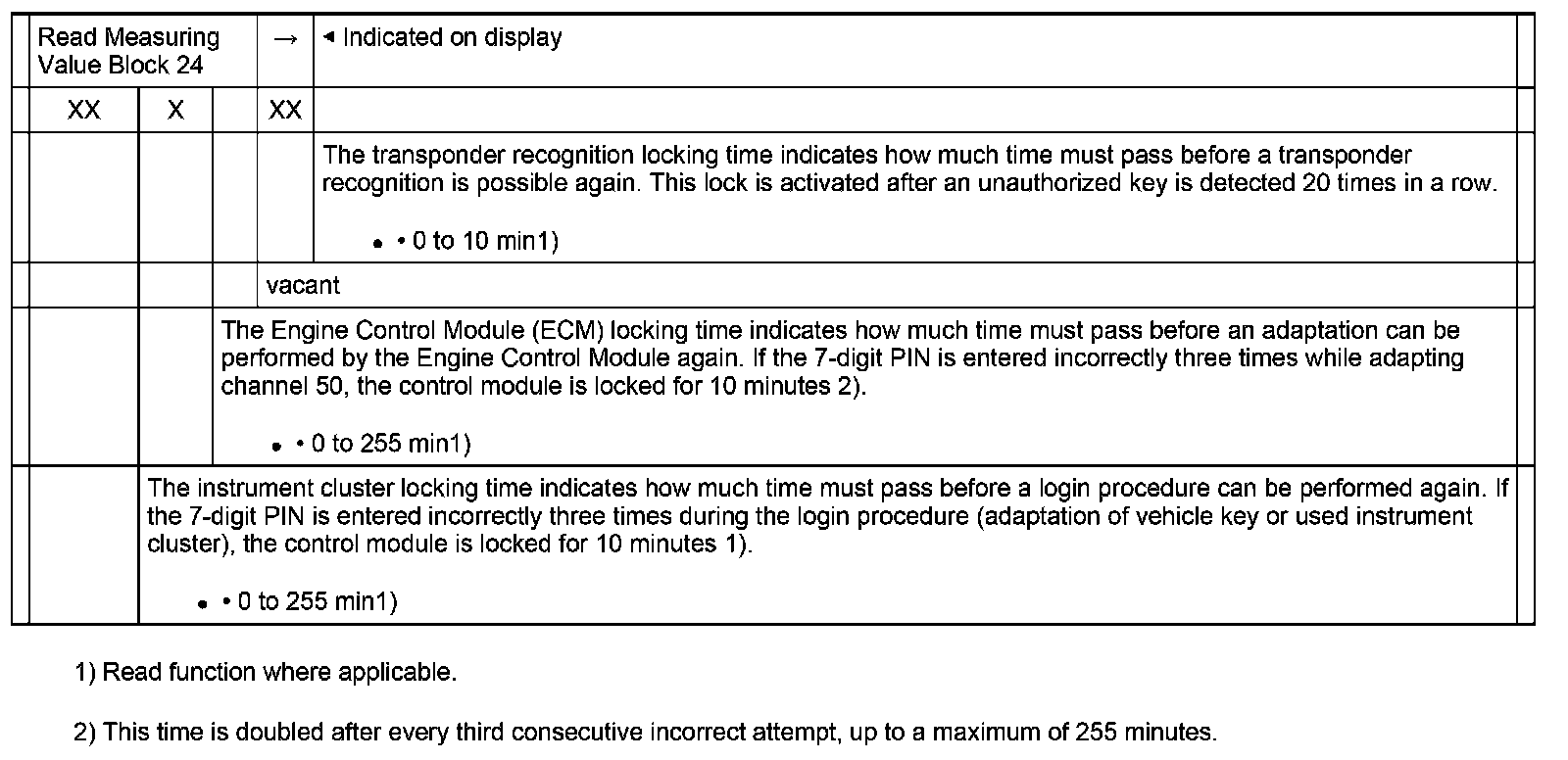

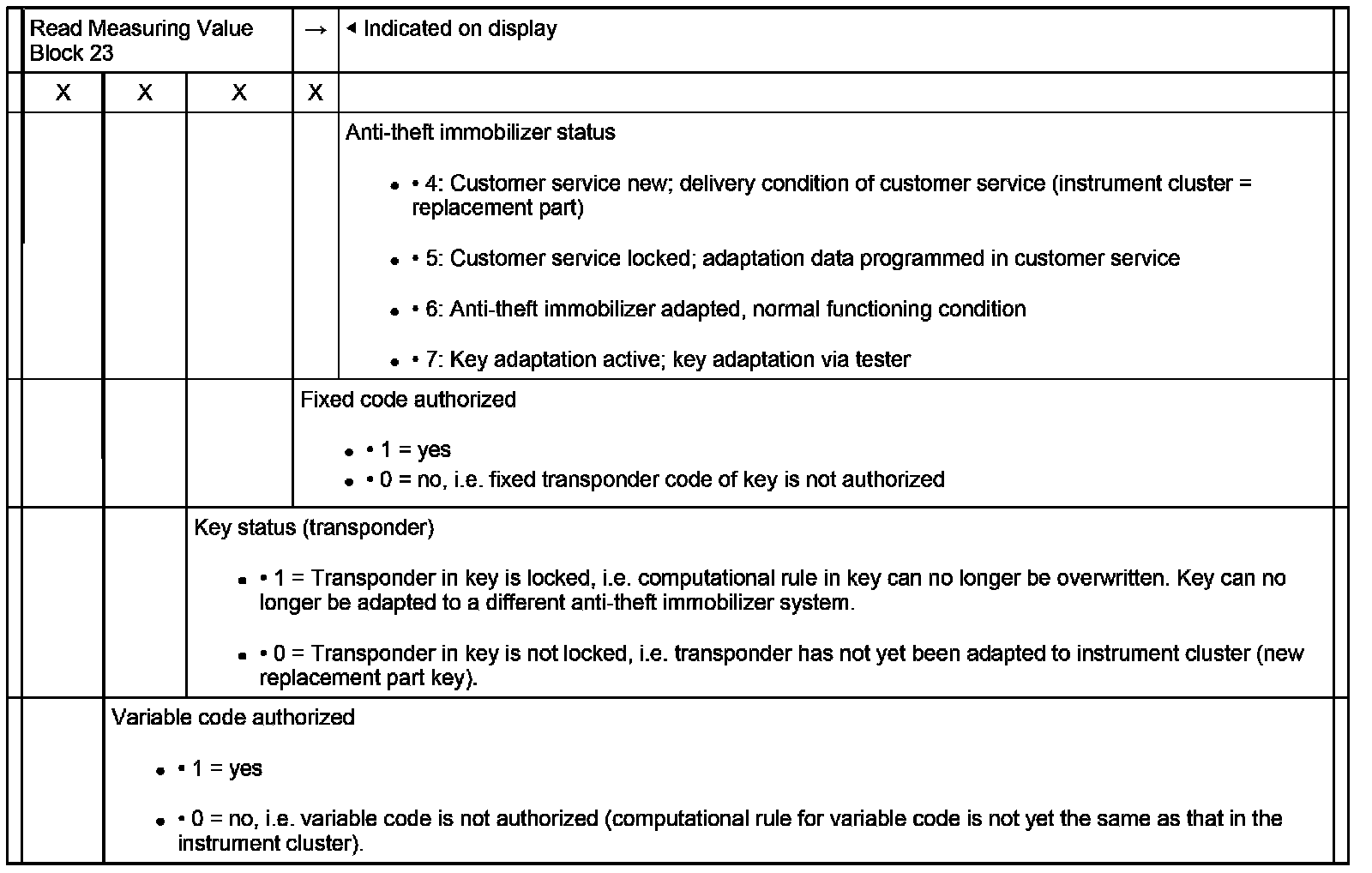

Read Measuring Value Blocks, interpreting
