Antenna, Phone: Service and Repair

Telephone Roof Antenna (Coupe From M.y. 2002), Removing And Installing

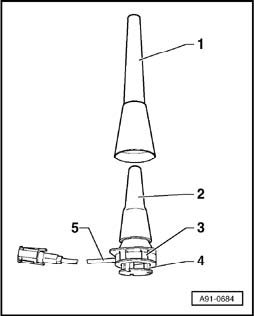

Telephone antenna consists of:

1 - Protective sheath
2 - Antenna
3 - Ground (GND) plate
4 - Locking ring
5 - Antenna cable

Here the antenna, Ground (GND) plate and antenna wire are inseparably bound with each other.

Locking ring -4- must be pulled out (removed) from antenna base before removing and installing.
- Remove locking ring.

Removing:
- Remove roof end trim.







- Insert a suitable plastic wedge between sealing lip (arrows) and roof -2- and carefully lever off protective sheath -1-.







- Press antenna sealing lip (arrows) inward through opening -2- from above using the plastic wedge.
- Disconnect harness connector.

Installing:
- Press antenna into opening from below using a light turning motion until it locks.
- Turn antenna far enough so that the antenna wire points in direction of wiring.







- Check that the sealing lip (arrows) has snapped out of the opening and press in locking ring -1- firmly until stop when sealing lip is seated correctly.

Ground (GND) plates -2- must contact roof firmly.







- Press protective sheath -1- carefully onto antenna using a light turning motion until it locks.
Sealing lip (arrows) must be pressed outward in a mushroom shape and contact roof -2- simultaneously.
- Connect antenna wire from telephone with the wire from antenna.
