A4 Cabriolet (8H7) L4-1.8L Turbo (AMB)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Description and Operation
>>
Front With Automatic Leveling Control
Front With Automatic Leveling Control

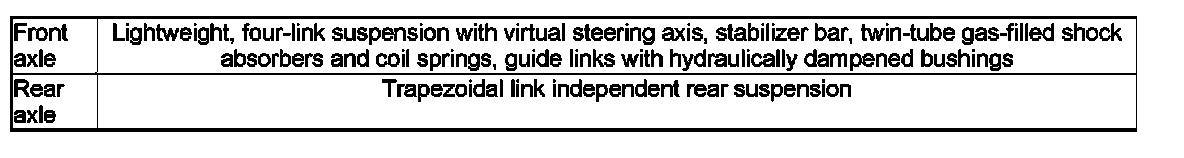

Suspension

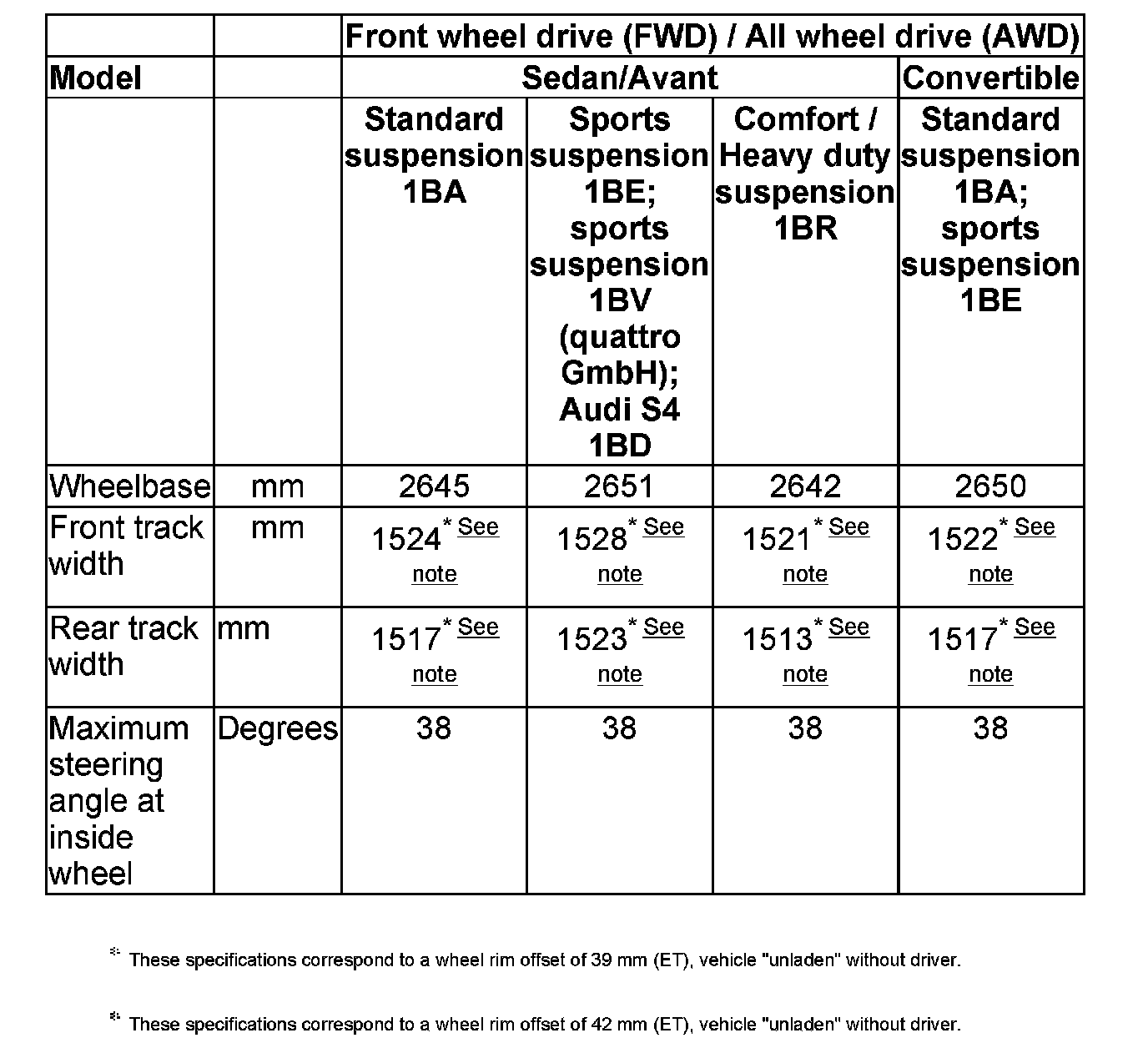

Note:
^
These specifications are applicable for all engines.
^
If
wheels
with different rim offset are installed the track widths are altered.
