Fan For E-Box In Plenum Chamber, Removing and Installing



Fan For E-Box In Plenum Chamber, Removing And Installing

NOTE: E-box plenum chamber may be equipped with a fan motor, depending on vehicle equipment.

Removing
- Remove E-box plenum chamber

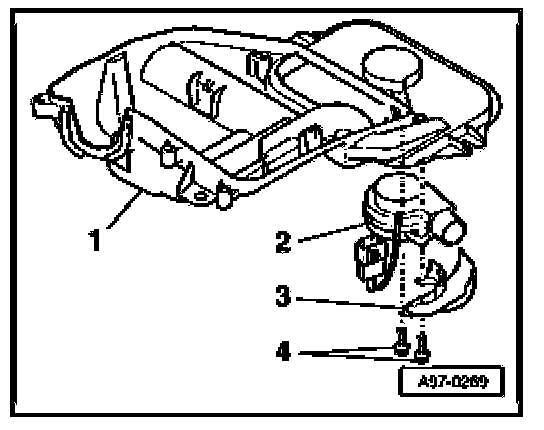

- Remove bolts -4- and detach fan -2- with air duct -3-

Installing
Installation is the reverse of removal.

Tightening torque

Component Nm
Fan to E-box plenum chamber 3
