Hazard Warning Switch: Service and Repair

Switch in center console, removing and installing

Removing

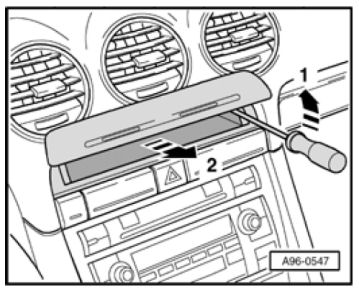

- Disengage storage compartment on both sides -arrow 1- and remove storage compartment from instrument panel toward rear -arrow 2-.

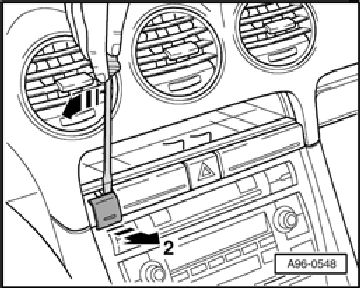

- Position a small, flat screwdriver on switch at top.





- Carefully pry out the respective switch from switch mount -arrows-.
- Unplug harness connector.

Installing

Installation is reverse of removal, paying attention to the following:
- Connect harness connector.
- Press switch into recess in instrument panel and engage.
