Connector Locations

Terminal Assignment On Connector For Fuel Gauge Sensor

Vehicles with front wheel drive:

Fuel gauge sensor is located in luggage compartment, front right.
- Remove luggage compartment lining.

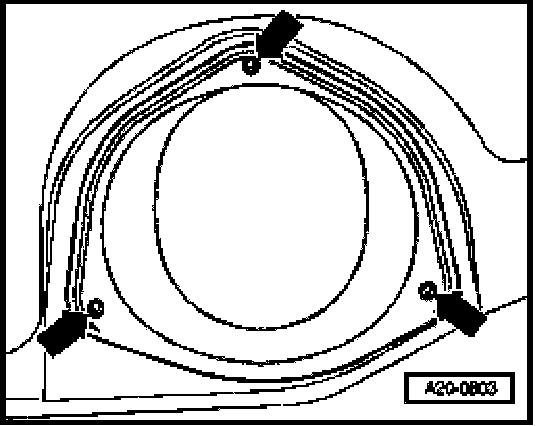

- Remove cover for connector flange -arrows-.

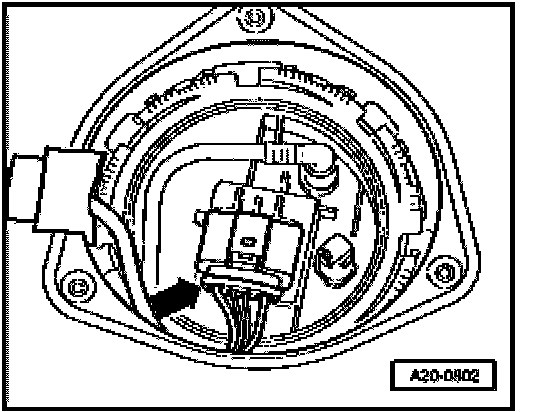

- Carefully disengage and unplug electrical 4-pin harness connector -arrow-.

Terminal assignment of the 4-pin connector on fuel gauge sender







1. B+ activation of electrical fuel pump
2. Wire connection from fuel gauge sender to instrument cluster (fuel gauge)
3. Ground (GND) from sender for fuel gauge sensor (sensor Ground)
4. Ground (GND) electrical fuel pump

Vehicles with all wheel drive:

Fuel gauge sensor is located under rear seat bench.
- Remove rear seat bench.

Fuel gauge sensor I -G-

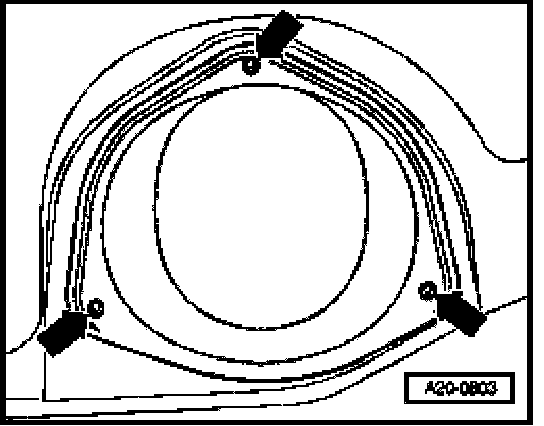

- Remove cover for right sealing flange -arrows-.







- Carefully disconnect and unplug electrical 4-pin harness connector -arrow-, right side of vehicle.


Terminal assignment of 4-pin connector on fuel gauge sensor I -G-







1. B+ activation of electrical fuel pump
2. Wire connection from fuel gauge sender to instrument cluster (fuel gauge)
3. Ground (GND) connection for fuel gauge sensor (sensor Ground)
4. Ground (GND) electrical fuel pump


Fuel Level Sensor 2 -G169-







- Remove cover for right sealing flange -arrows-.







- Carefully disconnect and unplug electrical 4-pin harness connector -arrow-, right side of vehicle.


Terminal assignment of the 4-pin harness connector at fuel level sensor 2 -G169-







1. Not assigned
2. Wire connection from fuel gauge sensor to instrument cluster (fuel gauge)
3. Ground (GND) for fuel gauge sensor (sensor Ground)
4. Not assigned
