Left Vent Temperature Sensor G150, Removing and Installing

Left Vent Temperature Sensor G150, Removing And Installing

- Remove "A"- pillar trim on drivers side.

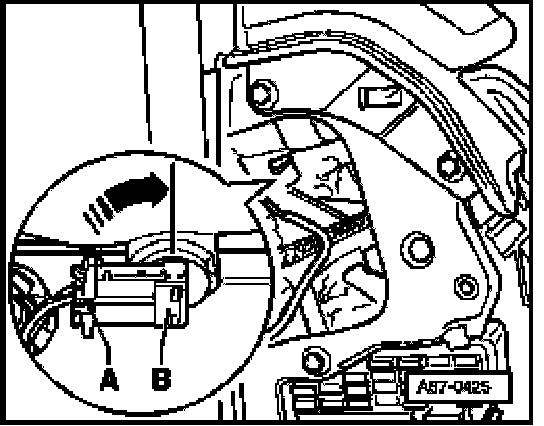

- Turn sensor - B - through 90 degrees and pull it out of air guide channel.
- Disconnect connector - A -.
