Mirror Adjuster Switch, Removing and Installing

Mirror Adjuster Switch, Removing And Installing

Removing
- Remove front door trim:

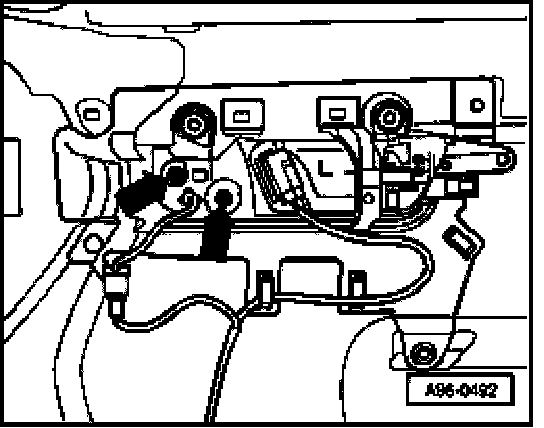

- Remove bolts -arrows- at pull handle for closing on back side of door trim.
- Remove panel for pull handle for closing on front side, under mirror adjuster switch.

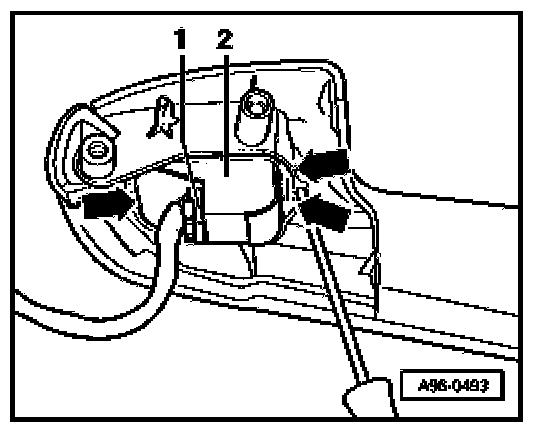

- Disconnect connector -1- at mirror adjuster switch -2-.
- Carefully release catches -arrows- using a small screwdriver.
- Pull mirror adjuster switch downward out from pull handle for closing.

Installing
Installation is reverse of removal, paying attention to the following:
- Press mirror adjuster switch into switch mount until catches engage.
