Tire Pressure Module: Service and Repair

Tire pressure monitoring control module J502, removing and installing

Removing

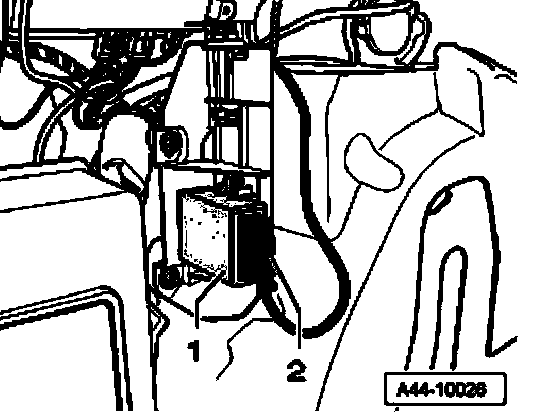

The tire pressure monitoring control module J502 is located behind side trim in luggage compartment (left-side).
- Remove side trim in luggage compartment (left-side)





- Unclip control module - 1 -.
- Disconnect connector - 2 - and take out control module.

Installing
Installation is carried out in reverse sequence.
