Downshift Switch: Locations

Kick down switch F8, 01J, CVT A/T FWD

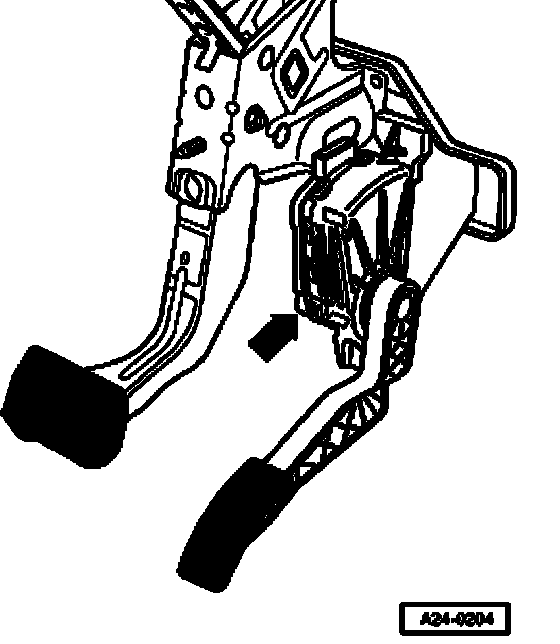

^ Location: In accelerator pedal module -arrow-.

Note:
^ In vehicles with gasoline engine, Kick Down Switch F8 adopts the functions of Throttle Position (TP) Sensor G79 and Accelerator Pedal Position Sensor 2 G185.
^ In vehicles with Diesel engine, Kick Down Switch F8 is installed as one unit with Throttle Position (TP) Sensor G79 as the switch.
