Shift Indicator - A/T: Locations

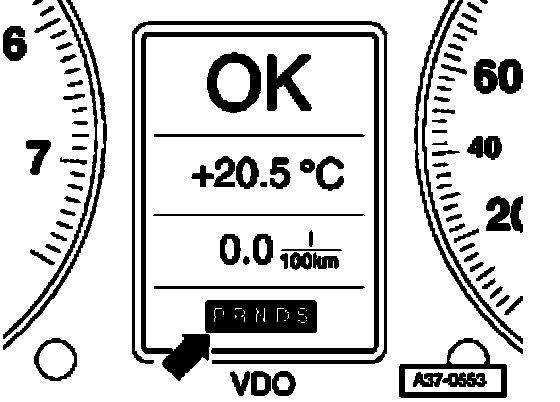

Transmission Range (TR) Display Y6, 01J, CVT A/T FWD





^ Location: Integrated in instrument cluster.

Note:
^ Transmission Range (TR) Display Y6 can only be replaced together with the instrument cluster.
