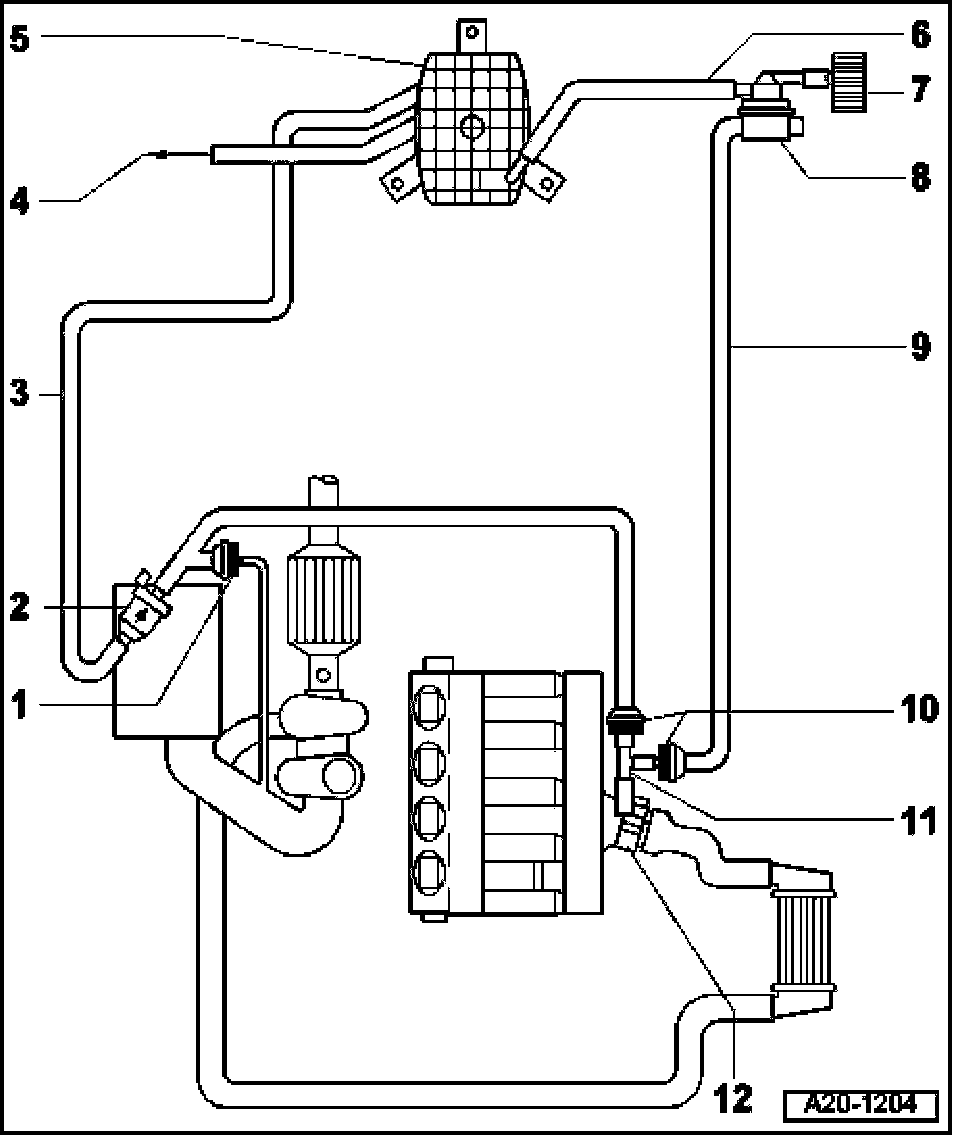

Hose Plan, EVAP Canister System / Leak Detection System

Hose Plan, EVAP Canister System / Leak Detection System







1. Check-valve
- Installation position (light/dark side): Arrow on valve points in direction of flow, as shown in illustration.
2. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Component location: Front right in engine compartment
3. Vent line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Installation position: Right side, beneath vehicle floor
- secured to fuel tank in fuel tank area
4. Vent line
- to gravity valve on fuel tank
5. EVAP canister
- Component location: Bottom of spare wheel well
6. Connection hose
- Leak Detection Pump (LDP)/EVAP canister
- Pressure side
7. Air filter housing
for Leak Detection Pump (LDP) -V144-
8. Leak Detection Pump (LDP) -V144-
- Component location: Under wheel housing liner in rear left wheelhouse
9. Vacuum line
- Leak Detection Pump (LDP)/throttle valve control module
10. Check-valves
- Installation position (light/dark side): Arrow on valve points in direction of flow, as shown in illustration.
11. T-piece
- Component location, see Fig. 1
12. Throttle valve control module -J338-

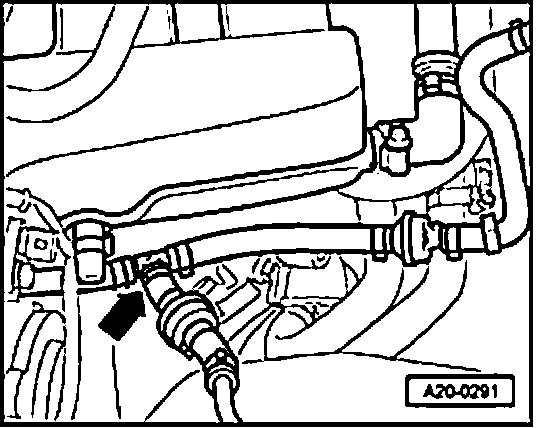

Fig. 1 Component location of T-piece

T-piece (arrow) is located on the left in engine compartment
