Constantly Variable Transmission 01J
>>
Test Tables
>>
Display Group 018-021
Display Group 018-021
01J CVT A/T FWD

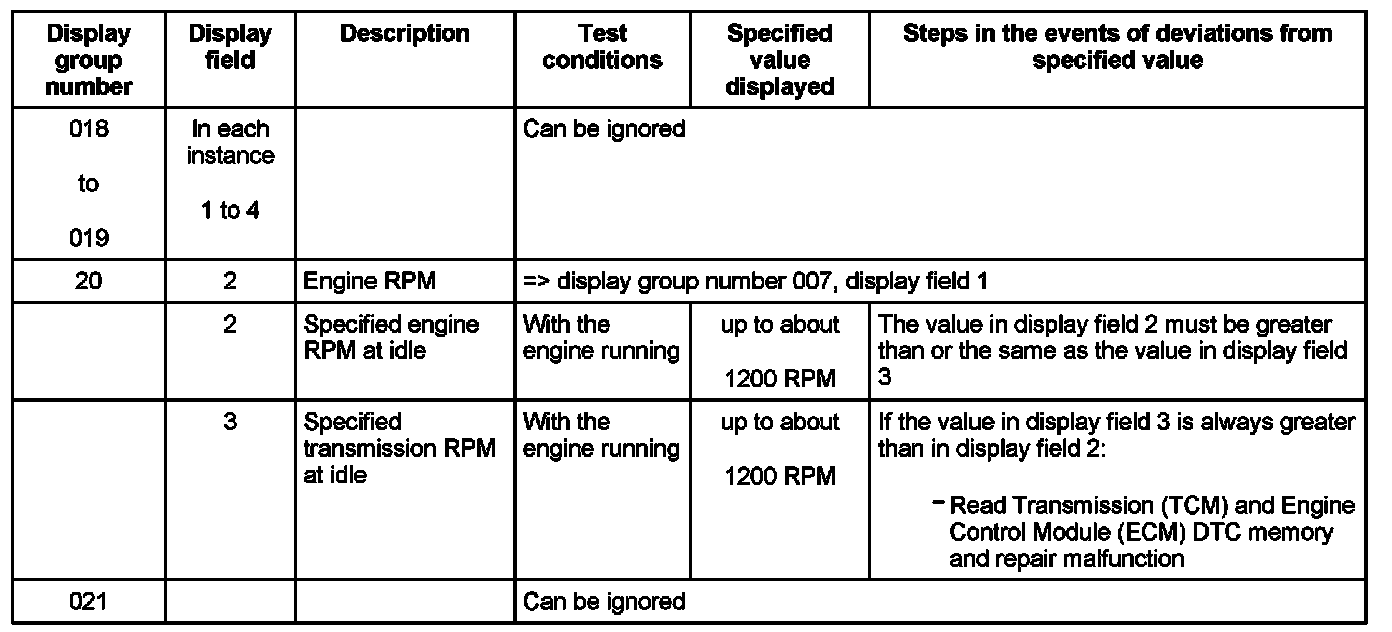

Display Group Number 018-019, Display Field (1-4), Display Grooup Number 020, Display Field (2-3):
