Display Group 005-006
01J CVT A/T FWD

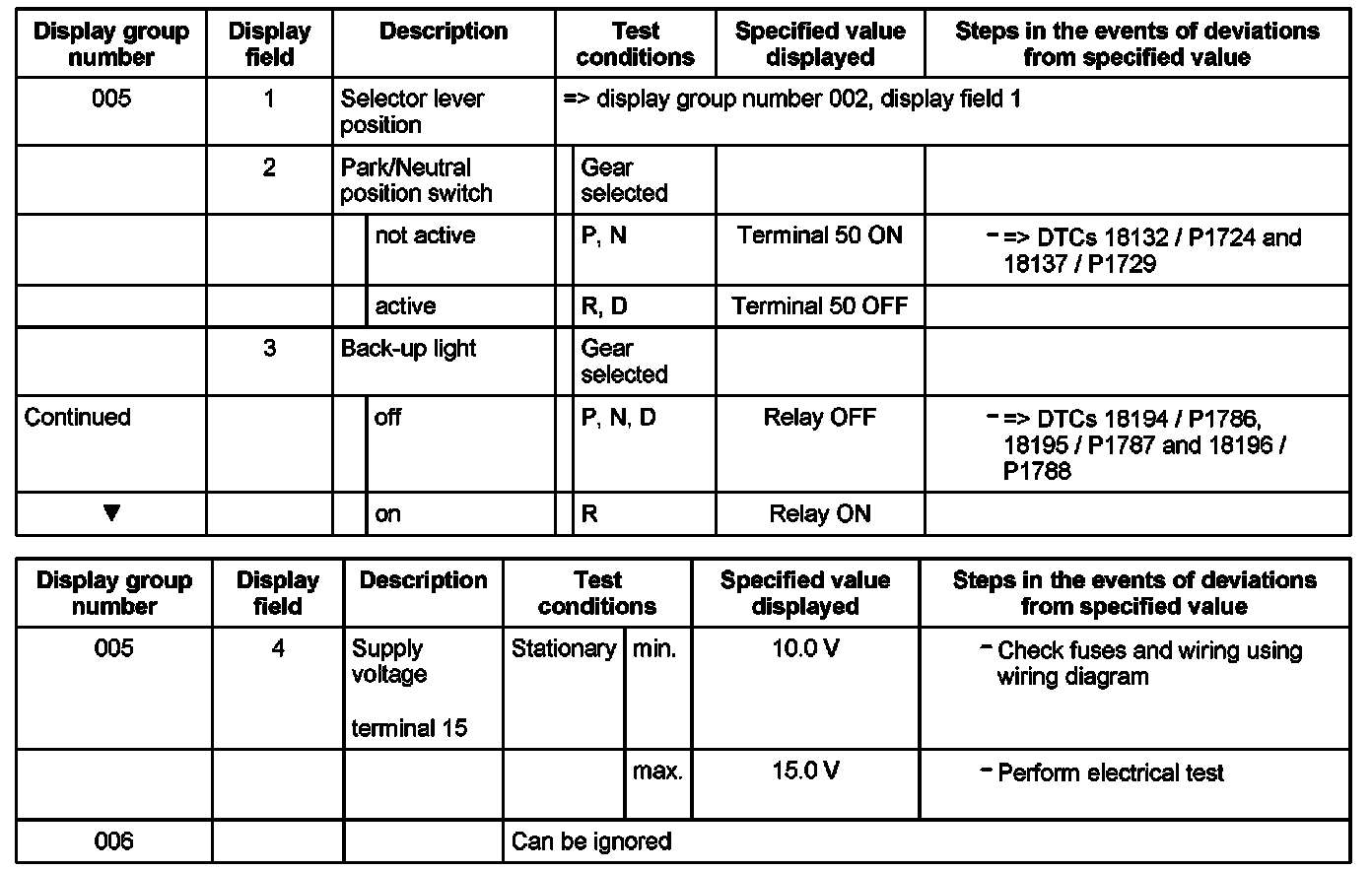

Display Group Number 005-006, Display Field (1-4):
2) While driving: a second technician is needed to read the specified values.
