Measured Value Block, Reading

Measured Value Block, reading, 01J CVT A/T FWD

CAUTION: Please observe safety precautions.

Test procedure
- Connect VAS 5051 Vehicle Diagnosis, Measurement and Information System and select vehicle system 02 Transmission Electronics. Ignition must be switched on.

or, depending on the desired operation:
- Start engine.





Display on VAS 5051
- Touch -1- diagnostic function 08 Read Measured Value Block.





Display on VAS 5051:
1 - Enter display group Max. input value = 255
- On key pad -2- enter desired 3-digit display group number go to List of Display Groups, and confirm entry by touching Q button. List of Selectable Display Groups

Example:
- Enter "001" for "Display group number 001" and confirm by touching Q button.





Display on VAS 5051 for display group 001 to 255:
1 - Display group X
2 - Display field 1
Display field 2
Display field 3
Display field 4

Note:
^ If a display field is not being used, there will be no display.

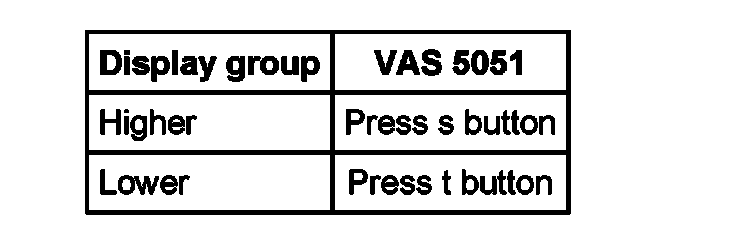

^ To switch to another display field, proceed as follows:





- End function "08 Read Measured Value Block" by touching [] button.
