Leak Detection Pump (LDP) -V144-, Checking







Recommended special tools and equipment
- V.A.G1526A hand multimeter
- V.A.G1594A connector test kit
- V.A.G1598/31 test box

Test requirements:
- Fuse for Leak Detection Pump (LDP) -V144- OK
- Fuel Pump (FP) relay OK, checking.
- Ignition switched off.

NOTE: Voltage is supplied to Leak detection pump (LDP) -V144- via the Fuel Pump (FP) relay.

Work procedure
- Remove left rear wheel.
- Remove rear left wheelhouse liner.

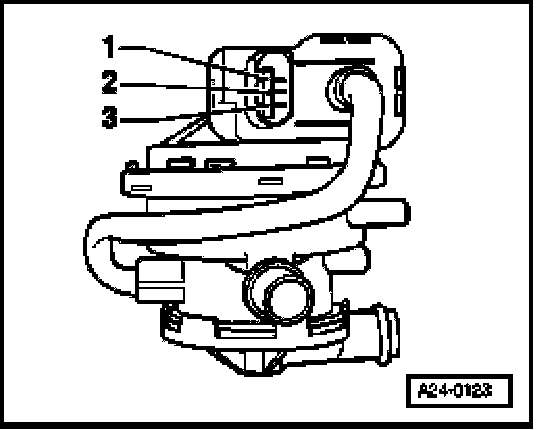

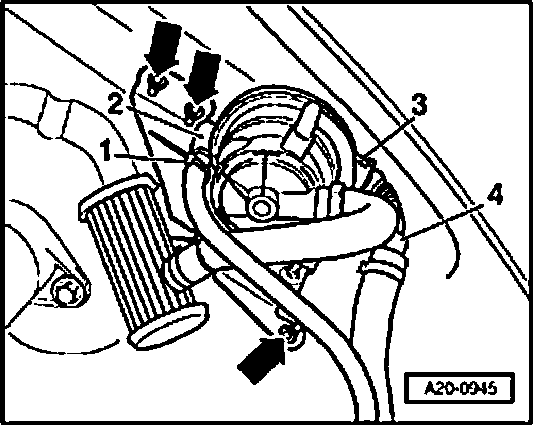

- Release and disconnect harness connector -3-.

Checking internal resistance

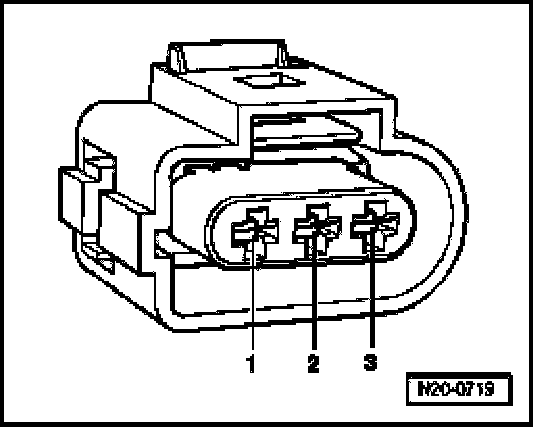

- Connect multimeter for resistance measurement as follows.

Leak Detection Pump (LDP) -V144- Specified value
Terminal
1 + 3 640 to 720 Ohms
2 + 3 15 to 17 Ohms

If specified values are not obtained:
- Replace Leak Detection Pump (LDP) -V144- see item 11.

If specified values are obtained:

Checking voltage supply







- Connect multimeter for voltage measurement as follows:

Harness connector Measure to
Terminal
Engine Ground (GND) 3

- Operate starter briefly.

Specified value: approx. battery voltage

- Switch ignition off.

If specified value is not obtained:
- Check wire connection from harness connector terminal 3 to Fuel Pump (FP) Relay -J17- via fuse for open circuit according to wiring diagram.

Specified value: Wire resistance max 1.5 Ohms

- If necessary, repair wire connection.

If voltage supply is OK:

Checking wire connections
- Connect test box to wiring harness of Engine Control Module (ECM). ECM is not connected.. Test Box, Connecting For Wiring and Component Test







- Check the following wire connections for open circuit according to wiring diagram:

Harness connector Test box
Terminal Socket
1 80
2 25

Specified value: Wire resistance max 1.5 Ohms

- Also check wires for short circuit to each other as well as to B+ and Ground (GND).

Specified value: Infinite Ohms (no continuity)

- If necessary, repair wire connection.

If no malfunctions are found in wires:
- Replace Engine Control Module (ECM).

Final procedures
After repair work, the following work steps must be performed in the mentioned sequence:
1. Check DTC memory. Mode 3: Check DTC Memory
2. If necessary, erase DTC memory. Mode 4: Reset/Erase Diagnostic Data
3. Generate readiness code Readiness Code, Generating

- End diagnosis and switch ignition off.
