Fuel Level Sensor G, Removing and Installing

Fuel Level Sensor G, Removing And Installing







Removing
- Remove fuel delivery unit

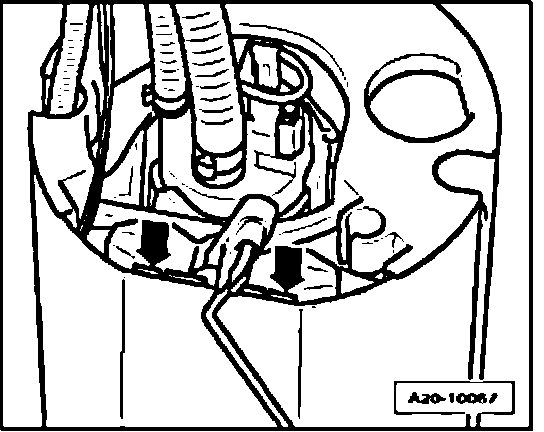

- Release retaining tabs - arrows - with a screwdriver and pull Fuel Level Sensor G upward and out.

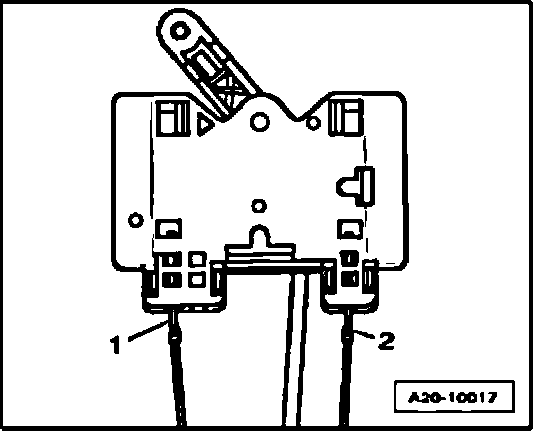

- Disengage electrical connectors -1- and -2- and disconnect them.

Instaling
Installation is in reverse order of removal. Note the following:
- Connect electrical connections -1- and -2- and check that they are securely engaged.
- Insert fuel level sensor G in guides on fuel delivery unit and push down until it engages.
- Install fuel delivery unit, observing notes for connecting battery Electrical equipment.
